Engine Piston for 1996-2000 Chevrolet C2500 & More - Sealed Power H749CP 30

$468.99

Vehicles this part fits

    Part number: H749CP30
    UPC: 614046273917
    Condition: New
    Weight: 7.77 LBS
    Pack of 8
    $468.99
    Adding to cart… The item has been added

    Have questions?

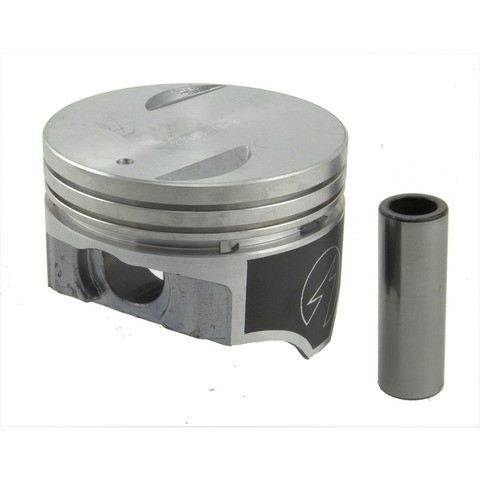

    Sealed Power Engine Piston Set P/N:H749CP 30 (Pack of 8)
    Sealed Power Engine Piston Set P/N:H749CP 30 (Pack of 8)
    $468.99
    $468.99

    Sealed Power H749CP 30 engine piston for the 1996-2000 Chevrolet C2500 V8 7.4L and other vehicles seals the cylinder and passes combustion force to the connecting rod. It is a 0.030 inch oversize set of eight pistons.

    • Helps improve cylinder sealing for less blow-by
    • Retains standard ring gaps in top groove
    • DUROSHIELD skirt-coated piston
    • Moly-graphite coating that helps reduce friction and supports fuel economy
    • Moly-graphite coating helps prevent damage from inadequate lubrication on start-up

    Quick facts

    • Part: Sealed Power H749CP 30 engine piston
    • Fits: 1996-2000 Chevrolet C2500 V8 7.4L and other vehicles
    • Material: Hypereutectic
    • Condition: New

    Worn or damaged pistons can show up as blow-by, low compression or oil use. Before you replace pistons, rule out other causes of the same signs, such as worn rings or a valve problem, because a piston swap means opening up the engine.

    Fits

    This piston set is listed for a wide range of Chevrolet and GMC models, including the 1996-2000 Chevrolet C3500 V8 7.4L and the 1996-2000 Chevrolet C3500HD V8 7.4L, and a V8 takes eight pistons. If your truck or van is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Bore diameter: 4.2500 in
    • Oversize: 0.030 in
    • Compression height: 1.625 in
    • Piston pin outside diameter: 0.9893 in (25.128 mm)
    • Pin offset: 0.04 in (1.016 mm)
    • Ring thickness: top and second compression 0.0781 in, oil 0.1875 in

    Build and materials

    • Type: cast piston set
    • Material: Hypereutectic
    • Head type: flat
    • Skirt coating: DUROSHIELD
    • Condition: New
    • Country of origin: India

    In the box

    One set of eight pistons. Assembly lubricant is not included.

    Interchange: P3098(8)030 · 224-3464.030
    1400P30 · H3440030 · ZHC8224N030

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    P3098(8)030, 1400P30, 224-3464.030, H3440030, ZHC8224N030

    Frequently Asked Questions

    Is the Sealed Power H749CP 30 piston set right for a 1996-2000 Chevrolet C2500 V8 7.4L?

    Yes. Sealed Power H749CP 30 is listed for the 1996-2000 Chevrolet C2500 V8 7.4L, which takes eight pistons. Other trucks and vans are in the "Vehicles it fits" section.

    What oversize is the H749CP 30 piston set?

    Sealed Power H749CP 30 is a 0.030 in oversize set, and the listed bore diameter is 4.2500 in.

    Do these pistons come with assembly lubricant?

    No. Assembly lubricant is not included with this piston set. The listing is one set of eight cast pistons.

    What is the DUROSHIELD coating on these pistons?

    These pistons have a DUROSHIELD skirt coating, plus a moly-graphite coating that reduces friction and helps guard against damage from poor lubrication on start-up.

    Are the H749CP 30 pistons flat-top?

    Yes. This piston set has a flat head, hypereutectic material and a 1.625 in compression height.
