Engine Piston for 1996-2000 Chevrolet C2500 & More - Sealed Power H749CP

$468.99

Vehicles this part fits

    Part number: H749CP
    UPC: 614046273894
    Condition: New
    Weight: 7.77 LBS
    Pack of 8
    $468.99
    Adding to cart… The item has been added

    Have questions?

    Sealed Power Engine Piston Set P/N:H749CP (Pack of 8)
    Sealed Power Engine Piston Set P/N:H749CP (Pack of 8)
    $468.99
    $468.99

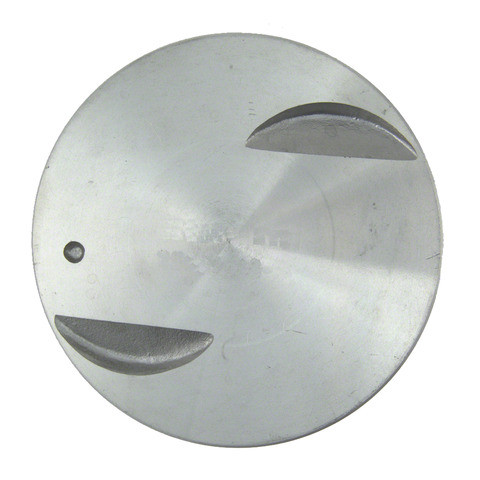

    Sealed Power H749CP engine piston for the 1996-2000 Chevrolet C2500 V8 7.4L and other vehicles carries combustion pressure to the connecting rod to turn the crankshaft. This is a cast set in hypereutectic material, with a flat head and two valve reliefs.

    • Helps improve cylinder sealing for less blow-by
    • Retains standard ring gaps in the top groove
    • DUROSHIELD skirt-coated piston
    • Moly-graphite coating reduces friction for higher fuel economy
    • Moly-graphite coating helps prevent damage from inadequate lubrication on start-up

    Quick facts

    • Part: Sealed Power H749CP engine piston
    • Fits: 1996-2000 Chevrolet C2500 V8 7.4L and other vehicles
    • Material: Hypereutectic
    • Condition: New

    Heavy blow-by, oil burning or low compression can mean worn pistons, though worn rings or a scored cylinder wall can be behind them too, so find the cause before replacing the pistons. A V8 takes one piston per cylinder, eight in all.

    Fits

    This set is listed for a wide range of Chevrolet and GMC models, including the 1996-2000 Chevrolet C3500 V8 7.4L and the 1996-2000 Chevrolet C3500HD V8 7.4L, as a direct-fit replacement.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Bore diameter: 4.2500 in
    • Piston pin outside diameter: 0.9893 in (25.128 mm)
    • Compression height: 1.625 in
    • Pin offset: 0.04 in (1.016 mm)
    • Compression ring thickness: 0.0781 in (top and second)
    • Oil ring thickness: 0.1875 in
    • Head type: Flat with 2 valve reliefs

    Build and materials

    • Piston material: Hypereutectic
    • Construction: Cast piston set
    • Coating: DUROSHIELD skirt coating; moly-graphite coating
    • Oversized: No
    • Condition: New
    • Country of origin: India

    In the box

    One engine piston set. Assembly lubricant is not included.

    Installation notes

    • Minimum clearance is given in the Piston Fitting Information on the carton label.

    Interchange: P3098(8)STD · 224-2464
    P489CH · P489H · 1400P · 10171065 · 12555794 · H3440 · ZHC8224N · ZHC8224NSTD

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    P489CH, P489H, P3098(8)STD, 1400P, 10171065, 12555794, 224-2464, H3440, ZHC8224N, ZHC8224NSTD

    Frequently Asked Questions

    Do these Sealed Power pistons fit the 1996-2000 Chevrolet C3500 V8 7.4L?

    Yes. Sealed Power H749CP is listed for the 1996-2000 Chevrolet C3500 V8 7.4L. For another truck or van, look up your year and model in the "Vehicles it fits" section.

    Are these Sealed Power hypereutectic pistons skirt coated?

    Yes. Sealed Power H749CP is a DUROSHIELD skirt-coated piston and also has a moly-graphite coating that reduces friction.

    Are these Sealed Power cast pistons standard size or oversized?

    They are standard size, not oversized. The bore diameter is 4.2500 in, and the piston pin outside diameter is 0.9893 in.

    Does the Sealed Power H749CP piston set include assembly lubricant?

    No. Assembly lubricant is not included with Sealed Power H749CP, so it is bought separately.

    Which ring set goes with the H749CP piston set?

    Use the E553K ring set with Sealed Power H749CP. This listing is the piston set, and the carton label has the minimum clearance for fitting.
