Engine Piston for 1996-2000 Chevrolet C2500 & More - Sealed Power H749CP 20

$468.99

Vehicles this part fits

    Part number: H749CP20
    UPC: 614046273900
    Condition: New
    Weight: 7.77 LBS
    Pack of 8
    $468.99
    Adding to cart… The item has been added

    Have questions?

    Sealed Power Engine Piston Set P/N:H749CP 20 (Pack of 8)
    Sealed Power Engine Piston Set P/N:H749CP 20 (Pack of 8)
    $468.99
    $468.99

    Sealed Power H749CP 20 engine piston for the 1996-2000 Chevrolet C2500 V8 7.4L and other vehicles turns combustion pressure into force on the connecting rod.

    • Helps improve cylinder sealing for less blow-by
    • Retains standard ring gaps in the top groove
    • DUROSHIELD skirt-coated piston
    • Moly-graphite coating helps extend engine life
    • Reduces friction to support fuel economy
    • Helps prevent damage from inadequate lubrication on start-up

    Quick facts

    • Part: Sealed Power H749CP 20 engine piston
    • Fits: the 1996-2000 Chevrolet C2500 V8 7.4L and other vehicles
    • Material: Hypereutectic
    • Condition: New

    Worn pistons or ring grooves can show up as blue exhaust smoke, oil use or low compression. Worn rings, scored cylinder walls, valve seals or a leaking head gasket can be behind these signs too, so find the cause before buying a piston set.

    Fits

    Along with the vehicle named above, this engine piston set is a direct-fit replacement for the 1996-2000 Chevrolet C3500 V8 7.4L and the 1996-2000 Chevrolet C3500HD V8 7.4L. Drivers of other vehicles can look up their year, make and model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Bore diameter: 4.2500 in
    • Oversize: 0.020 in
    • Compression height: 1.625 in
    • Piston pin outside diameter: 0.9893 in (25.128 mm)
    • Pin offset: 0.04 in (1.016 mm)
    • Ring thickness: top and second compression 0.0781 in, oil 0.1875 in

    Build and materials

    • Type: cast piston set
    • Piston material: Hypereutectic

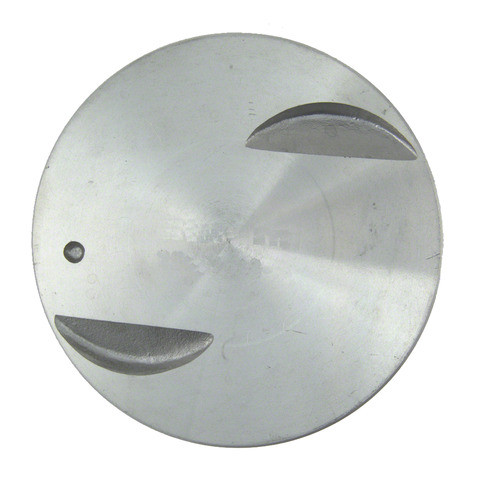

    • Head type: flat, with 2 valve reliefs
    • Condition: New
    • Country of origin: India

    In the box

    One engine piston set; each vehicle takes eight pistons. Assembly lubricant is not included.

    Installation notes

    • Use with the E553K ring set.
    • Piston fitting information, including minimum clearance, is on the carton label.

    Interchange: P3098(8)020 · 224-3464.020
    1400P20 · H3440020 · ZHC8224N020

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    P3098(8)020, 1400P20, 224-3464.020, H3440020, ZHC8224N020

    Frequently Asked Questions

    Will the Sealed Power H749CP 20 engine piston fit a 1996-2000 Chevrolet C3500 V8 7.4L?

    Yes. Sealed Power H749CP 20 fits the 1996-2000 Chevrolet C3500 V8 7.4L, and each vehicle takes eight pistons.

    Does this engine piston set come with assembly lubricant?

    No. Assembly lubricant is not included with this engine piston set.

    What bore size and oversize is the H749CP 20 piston?

    Sealed Power H749CP 20 has a 4.2500 in bore diameter and is 0.020 in oversize. Its piston pin outside diameter is 0.9893 in (25.128 mm).

    What coating does this hypereutectic piston have?

    This hypereutectic piston is skirt-coated with DUROSHIELD, and it has a moly-graphite coating that reduces friction.

    Which ring set goes with this piston set?

    Use the E553K ring set with it. The carton label carries the piston fitting information, including the minimum clearance.
