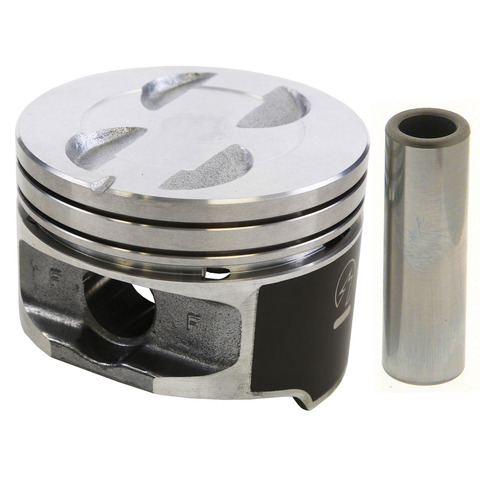

Sealed H606CP 30 piston set for the 1993-1995 Ford F-150 V8 5.0L and other vehicles replaces worn pistons in the engine. Each piston turns combustion pressure into force on the connecting rod, and this set is 0.030 in oversize.
- Cast hypereutectic pistons with a recessed head
- Blended skirt coat helps reduce engine wear, fatigue and piston slap
- Compression height of 1.600 in and piston pin outside diameter of 0.9122 in
- Top and second compression ring thickness of 1.50 mm each
Quick facts
- Part: Sealed H606CP 30 piston set
- Also called: engine piston set
- Fits: 1993-1995 Ford F-150 V8 5.0L and other vehicles
- Material: Hypereutectic
- Condition: New
Oil burning, low compression or a knock when the engine is cold can mean the pistons are worn, though worn piston rings or valve stem seals can be behind them too, so find the cause before replacing the pistons.
Fits
It fits the 1993-1995 Ford F-150 V8 5.0L, the 1993-1995 Ford F-250 V8 5.0L and the 1987-1995 Ford Mustang V8 5.0L, plus more Ford, Lincoln and Mercury models. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Bore diameter: 4.0000 in
- Oversize amount: 0.030 in
- Compression height: 1.600 in
- Piston pin outside diameter: 0.9122 in
- Top compression ring thickness: 1.50 mm
- Second compression ring thickness: 1.50 mm
- Quantity per vehicle: 8
Build and materials
- Construction: cast
- Piston material: Hypereutectic
- Piston head type: Recessed
- Assembly lubricant: not included
- Condition: New
- Country of origin: India
In the box
This listing is a piston set; a V8 5.0L engine takes eight pistons. Assembly lubricant is not included.
Interchange: P4113.30
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Sealed H606CP 30 fit a 1993-1995 Ford F-150 V8 5.0L?
Yes. Sealed H606CP 30 fits the 1993-1995 Ford F-150 V8 5.0L. Open the "Vehicles it fits" section to check other models and engines.
Is this engine piston set oversized?
Yes. This piston set is 0.030 in oversize, with a bore diameter of 4.0000 in.
Does this piston set come with assembly lubricant?
No. Assembly lubricant is not included with this set.
What are the Sealed H606CP 30 pistons made of?
Sealed H606CP 30 pistons are cast hypereutectic, with a recessed head and a blended skirt coat.
What are the compression height and pin diameter of these pistons?
This piston set has a compression height of 1.600 in and a piston pin outside diameter of 0.9122 in.
