Engine Piston for 1998-2001 Ford Ranger - Sealed H865CP 1.00MM

$174.99
Sealed Power Engine Piston Set H865CP1.00MM
Sealed Power Engine Piston Set H865CP1.00MM

Vehicles this part fits
    Part number: H865CP1.00MM
    UPC: 614046657908
    Condition: New
    Weight: 2.89 LBS
    Pack of 4
    $174.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Sealed Power Engine Piston Set P/N:H865CP 1.00MM (Pack of 4)
    Sealed Power Engine Piston Set P/N:H865CP 1.00MM (Pack of 4)
    $174.99
    $174.99

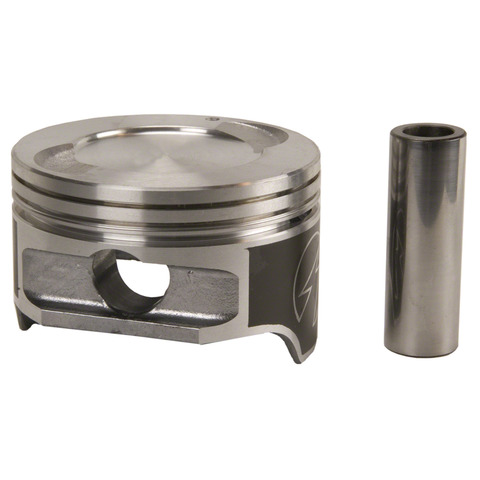

    Sealed H865CP 1.00MM engine piston for the 1998-2001 Ford Ranger 4-cylinder 2.5L moves in the cylinder bore and passes combustion force to the connecting rod. Each piston is cast, oversized by 1.00 mm, and has a recessed head.

    • Helps improve cylinder sealing for less blow-by
    • Retains standard ring gaps in the top groove
    • DUROSHIELD skirt-coated piston
    • Moly-graphite coating extends engine life
    • Reduces friction to support fuel economy
    • Prevents damage from inadequate lubrication on start-up

    Quick facts

    • Part: Sealed H865CP 1.00MM engine piston
    • Fits: 1998-2001 Ford Ranger 4-cylinder 2.5L
    • Material: Hypereutectic
    • Condition: New

    Worn pistons or rings can show up as oil burning, extra blow-by or low compression. Before you replace pistons, measure the cylinder bores and look them over for scoring with the engine off, then compare your clearance to the piston fitting information on the carton label.

    Fits

    This engine piston fits the 1998-2001 Ford Ranger 4-cylinder 2.5L, which takes four.

    Specifications

    Fit and size

    • Quantity per vehicle: 4
    • Oversize amount: 1.00 mm
    • Bore diameter: 3.7795 in
    • Piston pin outside diameter: 0.9126 in (23.18 mm)
    • Compression height: 1.200 in
    • Top compression ring thickness: 1.50 mm
    • Second compression ring thickness: 1.50 mm
    • Oil ring thickness: 3.00 mm
    • Pin offset: 0.06 in (1.524 mm)

    Build and materials

    • Construction: cast
    • Material: hypereutectic

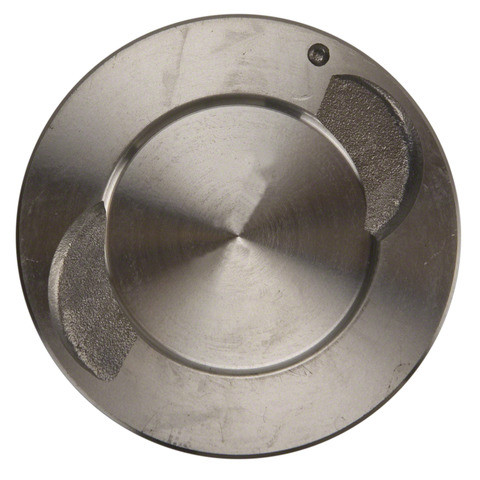

    • Head type: recessed
    • Skirt coating: DUROSHIELD
    • Condition: new
    • Country of origin: India

    In the box

    Assembly lubricant is not included.

    Interchange: P453A.40 · P5001(4)100 · 3168HC.1.0MM

    This part cross-references / interchanges with the following part numbers:

    P453A.40, P5001(4)100, 3168HC.1.0MM

    Frequently Asked Questions

    Is the Sealed H865CP 1.00MM piston right for a 1998-2001 Ford Ranger 4-cylinder 2.5L?

    Yes. Sealed H865CP 1.00MM is listed for the 1998-2001 Ford Ranger 4-cylinder 2.5L, and that engine takes four pistons.

    How oversize is the Sealed H865CP 1.00MM engine piston?

    This Sealed H865CP 1.00MM piston is oversized by 1.00 mm. Its listed bore diameter is 3.7795 in.

    What is the DUROSHIELD coating on this engine piston?

    DUROSHIELD is the skirt coating on this piston. The piston reduces friction and prevents damage from inadequate lubrication on start-up.

    Does this piston come with assembly lubricant?

    No. Assembly lubricant is not included with this engine piston, so you need to have your own on hand.

    Where do I find the minimum clearance for this piston?

    It is on the carton label under Piston Fitting Information. Compare that figure with your cylinder bore measurements before installing.
