Engine Piston for 1998-2001 Ford Ranger - Sealed Power H865CP

$174.99
Sealed Power Engine Piston Set H865CP
Sealed Power Engine Piston Set H865CP

Vehicles this part fits
    Part number: H865CP
    UPC: 614046657892
    Condition: New
    Weight: 2.89 LBS
    Pack of 4
    $174.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Sealed Power Engine Piston Set P/N:H865CP (Pack of 4)
    Sealed Power Engine Piston Set P/N:H865CP (Pack of 4)
    $174.99
    $174.99

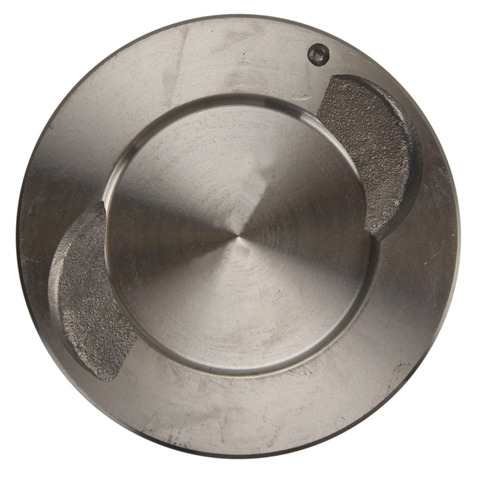

    Sealed Power H865CP engine piston for the 1998-2001 Ford Ranger 4-cylinder 2.5L helps seal the cylinder to cut blow-by. These Sealed Power pistons are listed as an engine piston set.

    • Helps improve cylinder sealing for less blow-by
    • Retains standard ring gaps in the top groove
    • DUROSHIELD skirt-coated piston with a moly-graphite coating that extends engine life
    • Reduces friction to support fuel economy
    • Helps prevent damage from inadequate lubrication on start-up
    • Recessed piston head type

    Quick facts

    • Part: Sealed Power H865CP engine piston
    • Fits: 1998-2001 Ford Ranger 4-cylinder 2.5L
    • Material: Hypereutectic
    • Condition: New

    Worn pistons or cylinders can show up as blow-by, oil use or an engine knock. Before you replace the pistons, rule out the rings, valves and head gasket, since they can produce similar signs.

    Fits

    These pistons fit the 1998-2001 Ford Ranger 4-cylinder 2.5L, which takes four.

    Specifications

    Fit and size

    • Quantity per vehicle: 4
    • Bore diameter: 3.7795 in
    • Piston pin outside diameter: 0.9126 in (23.18 mm)
    • Compression height: 1.200 in
    • Pin offset: 0.06 in (1.524 mm)
    • Ring thickness: top compression 1.50 mm, second compression 1.50 mm, oil 3.00 mm

    Build and materials

    • Type: cast piston set
    • Material: Hypereutectic
    • Coating: DUROSHIELD skirt coating
    • Size: standard, not oversized
    • Country of origin: India
    • Condition: New

    In the box

    One engine piston set. Assembly lubricant is not included.

    Installation notes

    • Minimum clearance is given under Piston Fitting Information on the carton label.

    Interchange: P5001(4)STD · 3168HC.STD
    P453A · F87Z6108HA · F87Z6108JA

    This part cross-references / interchanges with the following part numbers:

    P453A, P5001(4)STD, F87Z6108HA, F87Z6108JA, 3168HC.STD

    Frequently Asked Questions

    Does the Sealed Power H865CP fit a 1998-2001 Ford Ranger 4-cylinder 2.5L?

    Yes. Sealed Power H865CP is listed for the 1998-2001 Ford Ranger 4-cylinder 2.5L, which takes four pistons.

    Are these Sealed Power cast pistons hypereutectic?

    Yes. The piston material is hypereutectic, and the set is listed as cast pistons with a recessed head.

    Does the Sealed Power engine piston set come with assembly lubricant?

    No. Assembly lubricant is not included with Sealed Power H865CP, and the pistons are standard size, not oversized.

    What coating do Sealed Power hypereutectic pistons like this one have?

    These pistons are DUROSHIELD skirt-coated with a moly-graphite coating. The coating reduces friction and extends engine life.

    What bore and pin size is the H865CP piston set?

    This piston set has a 3.7795 in bore and a 0.9126 in (23.18 mm) piston pin outside diameter. Compression height is 1.200 in.
