Sealed Power Engine Piston Set H877CP
Sealed Power Engine Piston Set H877CP

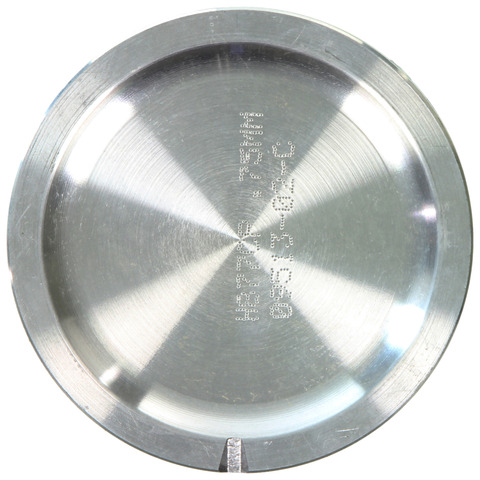

Sealed Power Engine Piston Set P/N:H877CP (Pack of 8)

Be the first to review this product
$691.99
MPN: H877CP
UPC: 614046703933
Item Package Quantity: 8

Have questions?

Ask an Expert
Sealed Power Engine Piston Set P/N:H877CP (Pack of 8)
Sealed Power Engine Piston Set P/N:H877CP (Pack of 8)
$691.99

Keep all eight cylinders sealing tightly with the Sealed Power Engine Piston Set H877CP — a set of eight premium-grade hypereutectic pistons that drops in as a direct-fit replacement for the V8-5.4L in Ford vans, trucks, and SUVs including the 1997-2003 Ford F-150, 1997-2004 Ford Expedition, 2000-2005 Ford Excursion, and 1998-1999 Lincoln Navigator. It covers 24 applications in all — see the Buyer's Guide tab for the complete list.

  • Hypereutectic pistons, premium grade: features a recessed head (.130 deep x 3.000 dia.) and standard bore — not oversized.
  • DUROSHIELD skirt coating: a moly-graphite skirt coating designed to reduce friction and help protect against scuffing from inadequate lubrication at start-up.
  • Ring sealing: retains standard ring gaps in the top groove and is designed to help improve cylinder sealing for reduced blow-by.
  • Key specs: bore diameter 3.5512 in, compression height 1.210 in, piston pin OD 0.8662 in (22.001 mm), pin offset 0.04 in (1.016 mm), pin type F; ring thicknesses top 1.50 mm, second 1.50 mm, oil 3.00 mm. Assembly lubricant is not included. Country of origin: India.

Interchange: TC3418 · P4170 · 224-3418 · 2243418. Manufacturer part number H877CP.

This part cross-references / interchanges with the following part numbers:

TC3418, P4170, 224-3418

Frequently Asked Questions

What engine does this piston set fit?

It fits the V8-5.4L in the listed Ford E-150/E-250/E-350/E-450, Excursion, Expedition, F-150, F-250 and F-350 models plus the Lincoln Navigator. Check the Buyer's Guide tab for your year and model.

How many pistons are included?

The quantity per application is 8, matching the V8-5.4L's eight cylinders, so a full engine uses this set of eight pistons.

Is this an oversized piston set?

No. The catalog lists it as standard (not oversized), with a bore diameter of 3.5512 in.

Is assembly lubricant included?

No. The Assembly Lubricant Included flag is No, so plan to supply your own assembly lube per the engine service procedure.

What are the pistons made of?

They are premium-grade hypereutectic pistons with a recessed head and a DUROSHIELD moly-graphite skirt coating.
