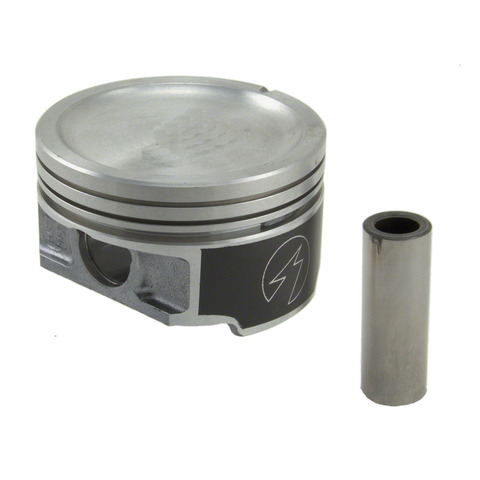

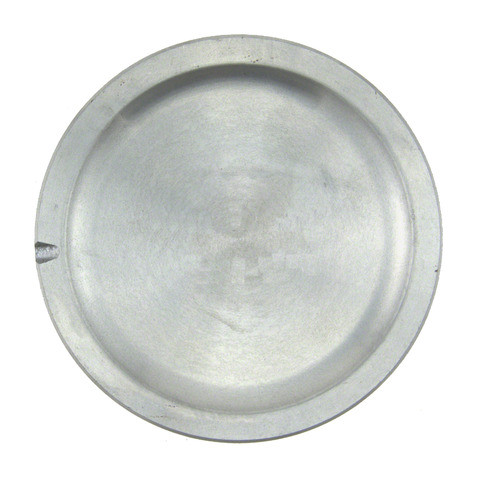

Sealed Power H885CP engine piston for the 1999-2006 Ford E-350 Super Duty V10 6.8L and other vehicles transfers combustion force to the connecting rod. These Sealed Power pistons are application-specific components made of hypereutectic material, with a recessed head.
- Piston helps improve cylinder sealing for less blow-by
- Top groove retains standard ring gaps
- DUROSHIELD skirt-coated piston
- Moly-graphite coating extends engine life
- Moly-graphite coating reduces friction for higher fuel economy
- Moly-graphite coating helps prevent damage from inadequate lubrication on start-up
Quick facts
- Part: Sealed Power H885CP engine piston
- Fits: 1999-2006 Ford E-350 Super Duty V10 6.8L and other vehicles
- Material: Hypereutectic
- Condition: New
Worn pistons or rings can show up as blue exhaust smoke, oil use, blow-by or lower compression, but other engine problems cause the same signs. With the engine off and cool, measure the cylinder bore and look for scoring or ridging before you decide a piston is the cause.
Fits
The 1999-2006 Ford E-350 Super Duty V10 6.8L, the 1999-2004 Ford F-53 Motorhome Chassis V10 6.8L and the 2003-2006 Ford E-450 Super Duty V10 6.8L take this piston, and so do many other vehicles. A 1999-2006 Ford E-350 Super Duty V10 6.8L takes ten. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Bore diameter: 3.5512 in
- Compression height: 1.210 in
- Piston pin outside diameter: 0.8662 in (22.001 mm)
- Pin offset: 0.04 in (1.016 mm)
- Ring thickness: top compression 1.50 mm, second compression 1.50 mm, oil 3.00 mm
- Quantity per vehicle: 10
Build and materials
- Piston material: hypereutectic
- Piston head: recessed
- Coating: DUROSHIELD skirt coating
- Oversized: no
- Condition: New
- Country of origin: India
In the box
Assembly lubricant is not included.
Installation notes
- Piston fitting information, including minimum clearance, is on the carton label.
Interchange: P3057(10)STD
TC3414A · P4183 · XC3Z6108CA
This part cross-references / interchanges with the following part numbers:
TC3414A, P4183, P3057(10)STD, XC3Z6108CA
Frequently Asked Questions
Does the Sealed Power H885CP fit the 1999-2004 Ford F-53 Motorhome Chassis V10 6.8L?
Yes, Sealed Power H885CP fits the 1999-2004 Ford F-53 Motorhome Chassis V10 6.8L. For another model or engine, open the "Vehicles it fits" section and look up your exact one.
Are these Sealed Power hypereutectic pistons coated?
Yes. The skirt has a DUROSHIELD coating, and the moly-graphite coating reduces friction and helps prevent damage from inadequate lubrication on start-up.
What size piston pin does the Sealed Power H885CP use?
The piston pin outside diameter is 0.8662 in (22.001 mm), with a pin offset of 0.04 in (1.016 mm). Sealed Power H885CP has a bore diameter of 3.5512 in.
Does this engine piston come with assembly lubricant?
No. Assembly lubricant is not included with this engine piston.
Do Sealed Power cast pistons keep standard ring gaps?
Yes. The top groove retains standard ring gaps on this piston, which also has a recessed head and hypereutectic material.
