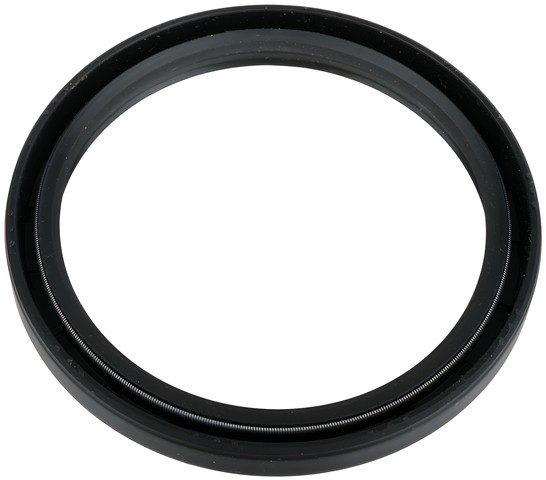

Keep transmission and transfer case lubricant sealed in and dirt and water out with the SKF Automatic Transmission Output Shaft Seal / Transfer Case Input Shaft Seal 23234. It installs in the left-side position as a direct-fit replacement for the 2001-2013 Toyota Highlander [All], 2001-2005 Toyota RAV4 [All], 2004-2010 Toyota Sienna [All], 1999-2003 Lexus RX300 [All], 2004-2006 Lexus RX330 [All], and 2007-2009 Lexus RX350 [All]. This part is cataloged under both names, so you may find it listed as an automatic transmission output shaft seal or as a transfer case input shaft seal.
The seal body stays stationary while its lip rides on the rotating shaft to keep lubricant contained. Toyota and Lexus applications use one per vehicle.
Interchange: 90311-58009
9031158009 · 4134553100 · MK098A4 · 27SS4553
This part cross-references / interchanges with the following part numbers:
What does this seal do?
It seals the shaft opening on the transmission/transfer case, keeping lubricant in and dirt and water out. The metal-cased body stays stationary while its polyacrylate lip rides on the rotating shaft.
Which vehicles does the SKF 23234 fit?
It fits the 2001-2013 Toyota Highlander, 2001-2005 Toyota RAV4, 2004-2010 Toyota Sienna, 1999-2003 Lexus RX300, 2004-2006 Lexus RX330, and 2007-2009 Lexus RX350. See the Buyer's Guide tab for the full list.
Why is it listed under two part-type names?
This part is cataloged as both an Automatic Transmission Output Shaft Seal and a Transfer Case Input Shaft Seal, so you may find it under either name for the same MPN 23234.
What size is this seal?
It measures 2.283 in inside/shaft diameter, 2.760 in outside diameter, and 0.307 in width, with a polyacrylate sealing surface.
What are signs this seal may need replacing?
Fluid seepage or drips around the shaft area and evidence of contamination are common signs. Diagnose the source of a leak before replacing, since other components can also leak.
