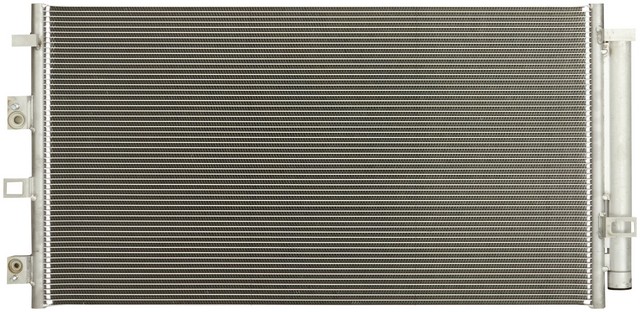

Spectra Premium 7-30172 A/C condenser for the 2020-2026 Ford Escape and other vehicles moves heat out of the A/C refrigerant so the system can cool the cabin.
- Parallel flow core made of aluminum
- Drier included with the condenser
- Female block fittings on the inlet and outlet
- Specialty testing for leak-free operation and reduced movement and vibration
Quick facts
- Part: Spectra Premium 7-30172 A/C condenser
- Fits: 2020-2026 Ford Escape and other vehicles
- Material: Aluminum
- Condition: New
Weak cooling, oily residue on the condenser or bent, damaged fins can mean the condenser is leaking or damaged. A low refrigerant charge, a leaking hose or a failing compressor can be behind these signs too, so find the cause before buying a new condenser.
Fits
Reverse engineered for fit and supplied in the same construction style as the OEM, it works as a 2020-2026 Ford Escape A/C condenser and also fits the 2022-2026 Ford Maverick and the 2020-2026 Lincoln Corsair. Each of them takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core length: 720 mm
- Core width: 386.2 mm
- Core thickness: 12 mm
- Inlet fitting: female, block fitting
- Outlet fitting: female, block fitting
Build and materials
- Core type: parallel flow
- Core material: aluminum
- Drier: included
- Condition: New
- Country of origin: China
In the box
One A/C condenser with its drier. Mounting hardware is not included, so plan on new hardware, since the old pieces may not be reusable.
Interchange: 7010172 · 30172 · 10929 · LX6Z19712B · LX6Z19712D · 30172C · CD321376 · PC30172 · 3130172 · CN30172PFC
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
7010172, 30172, 10929, LX6Z19712B, LX6Z19712D, 30172C, CD321376, PC30172, 3130172, CN30172PFC
Frequently Asked Questions
Is this the right condenser for a 2020-2026 Ford Escape?
Yes. Spectra Premium 7-30172 fits the 2020-2026 Ford Escape, and the vehicle takes one.
Does the Spectra Premium AC condenser come with a drier?
Yes. Spectra Premium 7-30172 includes a drier. Mounting hardware is not included.
What kind of fittings does this A/C condenser have?
The inlet and the outlet are both female block fittings.
What are signs a parallel flow condenser is leaking or damaged?
Oily residue on the condenser, bent or damaged fins and weak cooling can all be signs. Inspect the condenser visually only with the engine off and cool; a shop can test the A/C system.
How big is the core on the 7-30172 condenser?
The Spectra Premium 7-30172 aluminum core is 720 mm long, 386.2 mm wide and 12 mm thick.
