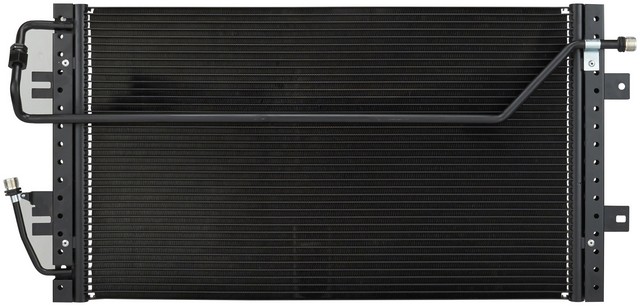

Spectra Premium 7-4622 A/C condenser for the 1995-2005 Chevrolet Astro and other vehicles sheds heat from the refrigerant so the A/C system can cool the cabin. It is supplied in the same construction style as the OEM unit.
- Reverse-engineered design for correct installation
- Specialty testing aimed at leak-free sealing and reduced movement and vibration
- Aluminum core of the 6mm Piccolo type
- Male threaded inlet and outlet fittings, both 3/4 - 16 UNF
Quick facts
- Part: Spectra Premium 7-4622 A/C condenser
- Fits: the 1995-2005 Chevrolet Astro and other vehicles
- Material: Aluminum
- Condition: New
A leaking or damaged condenser can show up as weak cooling, oily residue at the fittings or bent fins. These signs alone do not prove the condenser is at fault, since a low refrigerant charge can also weaken cooling.
Fits
This condenser fits the 1995-2005 Chevrolet Astro and the 1995-2005 GMC Safari.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core length: 666 mm
- Core width: 395 mm
- Core thickness: 18 mm
- Inlet and outlet fitting thread: 3/4 - 16, UNF
Build and materials
- Core type: 6mm Piccolo
- Core material: Aluminum
- Fittings: threaded, male inlet and outlet
- Condition: New
- Country of origin: China
In the box
One A/C condenser. This listing holds one condenser, and each vehicle takes one. A drier and mounting hardware are not included, so plan on new mounting hardware.
Interchange: 156816 · AG720 · 7014622 · 1040011 · P40011P · 4622 · 10258 · CF10042 · CF1165 · 40530 · 52591 · 52467045 · 89019058 · CNDDPI4622 · 200137 · 1K200137 · CD40011 · 2431322 · GM3030179 · 314622 · AUC4622 · 2154 · CN4622PFC
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
156816, AG720, 7014622, 1040011, P40011P, 4622, 10258, CF10042, CF1165, 40530, 52591, 52467045, 89019058, CNDDPI4622, 200137, 1K200137, CD40011, 2431322, GM3030179, 314622, AUC4622, 2154, CN4622PFC
Frequently Asked Questions
Does the Spectra Premium 7-4622 A/C condenser fit the 1995-2005 GMC Safari?
Yes. Spectra Premium 7-4622 fits the 1995-2005 GMC Safari, and the 1995-2005 Chevrolet Astro as well.
Does this Spectra Premium AC condenser come with a drier?
No. This condenser has no drier and no mounting hardware, so plan on new mounting hardware for the install.
What thread size are the fittings on the 7-4622 condenser?
Spectra Premium 7-4622 has male threaded inlet and outlet fittings, both 3/4 - 16 UNF.
How big is the core on this A/C condenser?
The aluminum core is 666 mm long, 395 mm wide and 18 mm thick, and it is the 6mm Piccolo core type.
Is CF10042 a number this condenser replaces?
Yes. CF10042 is one of the other-brand numbers Spectra Premium 7-4622 replaces, and it appears on the Interchange line.
