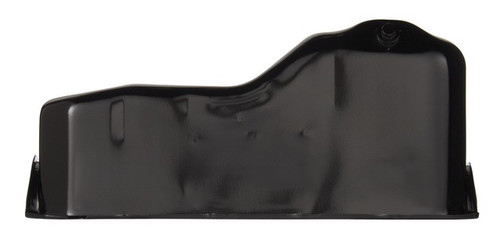

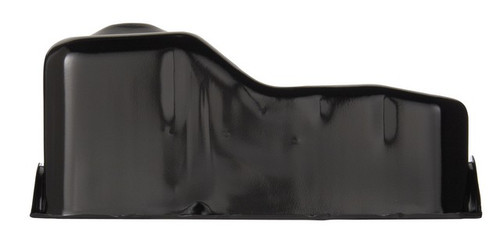

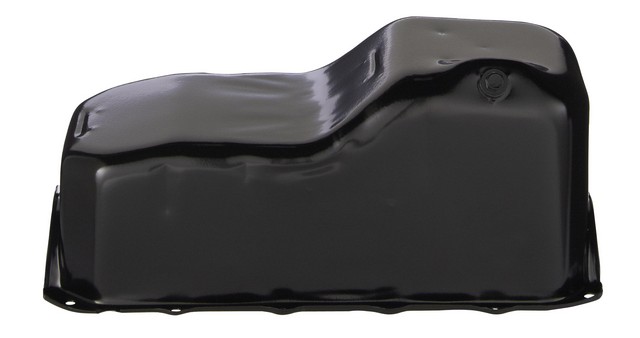

Spectra Premium GMP10A oil pan for the 1987-1989 Chevrolet Camaro V6 2.8L, the 1990-1992 Camaro V6 3.1L and other vehicles collects and holds engine oil at the bottom of the engine. This Spectra Premium oil pan, also called an engine oil pan, replaces a worn or leaking pan on these engines.
- Cold rolled steel (EDDQ) body with a powder-coated finish
- Baffled wet-sump design with the sump at the rear
- Drain plug included, with an M14 - 1.5 drain thread
- 12 mounting holes
- Maximum width of 235 mm and maximum depth of 196 mm
Quick facts
- Part: Spectra Premium GMP10A oil pan
- Also called: engine oil pan
- Fits: the 1987-1989 Chevrolet Camaro V6 2.8L, the 1990-1992 Camaro V6 3.1L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil seepage along the pan, a dent or crack in the steel, or rust at the seams can mean the pan is worn. A loose drain plug or a leaking rear main seal can also leave oil in those spots, so find the source with the engine off and cool before you replace the pan.
Fits
This pan is listed for a wide range of Chevrolet, GMC and Pontiac models, including the 1987-1993 Chevrolet S10 V6 2.8L and the 1991-1993 GMC Sonoma V6 2.8L. It is a direct-fit replacement intended to meet or exceed the performance of the original equipment it replaces. The 1987-1989 Chevrolet Camaro V6 2.8L takes one pan. If your vehicle is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Sump location: rear
- Mounting holes: 12
- Maximum width: 235 mm
- Maximum depth: 196 mm
- Drain thread size: M14 - 1.5
- Quantity per vehicle: 1
Build and materials
- Type: wet sump, baffled
- Material: Cold Rolled Steel (EDDQ)
- Finish: powder coated
- Drain plug: included
- Condition: New
- Country of origin: Canada
In the box
One oil pan with a drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310579, 103091, KGMP10A, 264122, 10078999, 595, SPIGMP10A, 501097, RGMP10A
Frequently Asked Questions
Is the Spectra Premium GMP10A a Camaro oil pan for the 1987-1989 Chevrolet Camaro V6 2.8L?
Yes. Spectra Premium GMP10A is listed for the 1987-1989 Chevrolet Camaro V6 2.8L and the 1990-1992 Camaro V6 3.1L, and the quantity is one pan per vehicle.
Does this S10 oil pan fit the 1987-1993 Chevrolet S10 V6 2.8L?
Yes. This pan is listed for the 1987-1993 Chevrolet S10 V6 2.8L. For a different year or engine, look up your own vehicle in the "Vehicles it fits" section on this page.
What thread size is the drain plug on the Spectra Premium GMP10A oil pan?
The drain thread is M14 - 1.5, and a drain plug comes with the Spectra Premium GMP10A pan.
Does this oil pan come with the oil pickup or windage tray?
No. This pan includes a drain plug, but the oil pickup, windage tray and crankshaft wiper are not included.
What is this oil pan made of, and is it baffled?
The pan is cold rolled steel (EDDQ) with a powder-coated finish. It is a baffled wet-sump pan with the sump at the rear.
