Oil Pan for 2004-2012 Chevrolet Colorado & More - Spectra Premium GMP63B

$238.99

WARNING:California Proposition 65▾

Spectra Premium Engine Oil Pan GMP63B - view 2

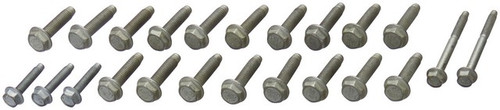

Spectra Premium Engine Oil Pan GMP63B - view 3

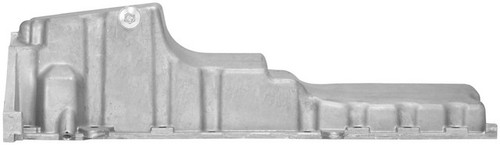

Spectra Premium Engine Oil Pan GMP63B - view 4

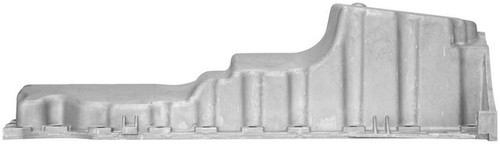

Spectra Premium Engine Oil Pan GMP63B - view 5

Part number: GMP63B

UPC: 671607014402

Condition: New

Weight: 41.55 LBS

Item Package Quantity: 1

$238.99

Current Stock: 14

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

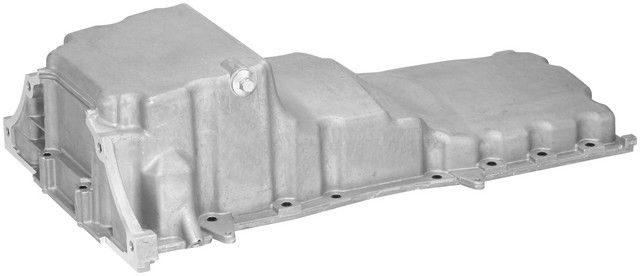

Spectra Premium Engine Oil Pan P/N:GMP63B

$238.99

Description

Spectra Premium GMP63B oil pan for the 2004-2006 Chevrolet Colorado 5-cylinder 3.5L, the 2007-2012 Colorado 5-cylinder 3.7L and other vehicles collects and holds the engine's oil at the bottom of the engine. Oil drains back into it after circulating through the engine.

Aluminum pan with an uncoated finish
Baffled wet-sump pan with the sump at the front
Dipstick port and oil level sensor port in the pan
23 mounting holes for fastening the pan

Quick facts

Part: Spectra Premium GMP63B oil pan
Also called: engine oil pan
Fits: 2004-2006 Chevrolet Colorado 5-cylinder 3.5L, the 2007-2012 Colorado 5-cylinder 3.7L and other vehicles
Material: Aluminum
Condition: New

Oil spots under the car, wet oil along the pan or a dented or cracked pan can mean it needs replacing. Before you replace it, rule out a loose drain plug, a worn pan gasket or a leak from another part of the engine, since those leak oil too. Each engine takes one pan.

Fits

This oil pan also fits the 2004-2006 GMC Canyon 5-cylinder 3.5L and the 2007-2012 Canyon 5-cylinder 3.7L. Spectra Premium engineers its oil pans to meet or exceed the performance of the original equipment they replace.

Specifications

Fit and size

Quantity per vehicle: 1
Sump location: Front
Maximum width: 374 mm
Maximum depth: 160 mm
Mounting holes: 23
Drain thread size: M12 - 1.75

Build and materials

Material: Aluminum
Finish: Uncoated
Sump type: Wet
Baffled: Yes
Dipstick port: Yes
Oil level sensor port: Yes
Condition: New
Country of origin: China

In the box

One oil pan with a drain plug. The pickup, windage tray and crankshaft wiper are not included.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

3312472052215980, 3310084, KGMP63B, 264483, 12580242, 12595267, 12595268, 12600498, SPIGMP63B, OP37607

Buyer's Q&A

Frequently Asked Questions

Does the Spectra Premium GMP63B work as a Chevy Colorado oil pan for the 2007-2012 5-cylinder 3.7L?

Yes. Spectra Premium GMP63B fits the 2007-2012 Chevrolet Colorado 5-cylinder 3.7L, and it also fits the 2004-2006 Colorado 5-cylinder 3.5L.

Does the Spectra Premium oil pan come with the oil pickup and windage tray?

No. The pan comes with its drain plug only; the pickup, windage tray and crankshaft wiper are not included.

Is the Spectra Premium engine oil pan baffled, and does it have a dipstick port?

Yes. This oil pan is baffled, with a dipstick port and an oil level sensor port, and it is a wet-sump pan with the sump at the front.

What thread size is the drain plug on the GMP63B?

The drain thread size is M12 - 1.75, and Spectra Premium GMP63B includes the drain plug.

What are the signs of a damaged aluminum oil pan?

With the engine off and cool, look for fresh oil on the pan or on the ground beneath it, and for dents or cracks. These can mean the pan needs replacing; a shop can find the source.
