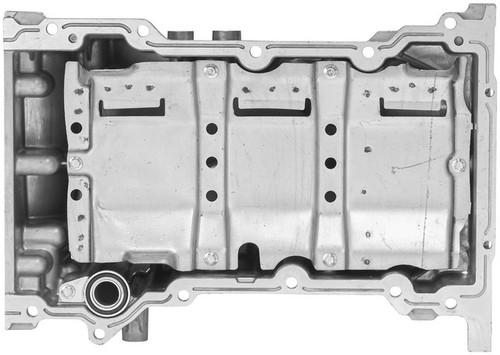

Spectra Premium GMP68A oil pan for the 2008-2009 Chevrolet Equinox V6 3.6L, the 2010-2012 Equinox V6 3.0L and other vehicles holds the engine's oil in a wet sump at the bottom of the engine. Also called an engine oil pan, it is designed to meet or exceed the performance of the original equipment it replaces.
- Aluminum pan body with an uncoated finish
- Baffled wet-sump design
- Drain plug supplied, with an M12 - 1.75 drain thread
- Oil pickup supplied with the pan
- 13 mounting holes and a front sump location
Quick facts
- Part: Spectra Premium GMP68A oil pan
- Also called: engine oil pan
- Fits: 2008-2009 Chevrolet Equinox V6 3.6L, the 2010-2012 Equinox V6 3.0L and other vehicles
- Material: Aluminum
- Condition: New
Oil leaking from the lower edge of the engine, a dented or cracked pan or damaged drain threads can mean the pan needs replacing. These signs alone do not prove the pan is the problem, since a worn pan gasket can leave oil in the same place.
Fits
Listed for a wide range of Chevrolet, Buick, Cadillac, GMC, Pontiac, Saab and Saturn models, this pan also covers the 2012-2013 Chevrolet Impala V6 3.6L and the 2008-2012 Chevrolet Malibu V6 3.6L. Driving something else? Look up your year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Sump location: Front
- Mounting holes: 13
- Maximum width: 295 mm
- Maximum depth: 132 mm
- Drain thread size: M12 - 1.75
Build and materials
- Type: Wet sump, baffled
- Material: Aluminum
- Finish: Uncoated
- Drain plug: Included
- Oil pickup: Included
- Country of origin: China
- Condition: New
In the box
One oil pan with its drain plug and oil pickup. A crankshaft wiper and a windage tray are not included. This listing is one pan, and each vehicle takes one.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3312472052215892, 3310069, KGMP68A, 264377, 12575368, 12609875, 12625110, 12636673, 12638371, 12666374, 12838371, 31100119, SPIGMP68A, OP37539
Frequently Asked Questions
Is this a Chevy Malibu oil pan that fits the 2008-2012 Chevrolet Malibu V6 3.6L?
Yes, Spectra Premium GMP68A is listed for the 2008-2012 Chevrolet Malibu V6 3.6L. For another car, look up its year and engine in the "Vehicles it fits" section.
Is this an Impala oil pan for the 2012-2013 Chevrolet Impala V6 3.6L?
Yes. Spectra Premium GMP68A is listed for the 2012-2013 Chevrolet Impala V6 3.6L, and that car takes one pan.
Does the Spectra Premium oil pan come with a drain plug and oil pickup?
Yes, both are included with the GMP68A. It does not come with a crankshaft wiper or a windage tray.
What drain plug thread does this baffled aluminum oil pan use?
The drain thread is M12 - 1.75. The pan has a front sump location and 13 mounting holes.
Is this wet-sump pan baffled, and does it have a dipstick port?
Yes, the GMP68A is baffled. It has no dipstick port and no oil level sensor port.
