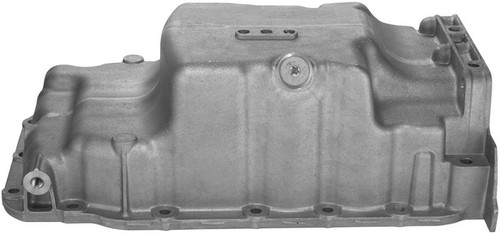

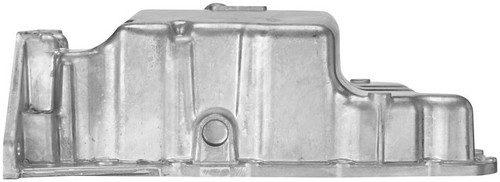

Spectra Premium GMP86A oil pan for the 2001-2005 Saturn L300 V6 3.0L and other vehicles holds the engine's oil under the crankcase. The Spectra Premium oil pan meets or exceeds the performance of the original equipment it replaces.
- Aluminum construction with an uncoated finish
- Drain plug included, with an M14 - 1.5 drain thread
- 17 mounting holes
- Wet sump design with the sump at the front
- Not baffled, with no dipstick port or oil level sensor port
Quick facts
- Part: Spectra Premium GMP86A oil pan
- Also called: engine oil pan
- Fits: 2001-2005 Saturn L300 V6 3.0L and other vehicles
- Material: Aluminum
- Condition: New
Oil drips under the parked car, a cracked or dented pan or stripped drain threads can mean the pan is worn or damaged, though a leaking pan gasket or a loose drain plug can leave a similar drip, so find the source before you replace the pan.
Fits
The pan is listed for several Saturn models, including the 2001-2005 Saturn L300 V6 3.0L, the 2001-2003 Saturn LW300 V6 3.0L and the 2000 Saturn LS2 V6 3.0L. If your Saturn is a different year or engine, look it up in the "Vehicles it fits" section on this page.
Specifications
Fit and size
- Sump location: Front
- Quantity per vehicle: 1
- Maximum width: 304 mm
- Maximum depth: 133 mm
- Mounting holes: 17
- Drain thread size: M14 - 1.5
Build and materials
- Sump type: Wet
- Material: Aluminum
- Finish: Uncoated
- Baffled: No
- Condition: New
- Country of origin: China
In the box
One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included. This listing is one oil pan, the quantity the engine takes.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3312469904732338, 3310293, 264478, 9157816, 31100871, SPIGMP86A, 20037241, NOE20037241, 09157816, OP37712
Frequently Asked Questions
Is this an LS2 oil pan that fits the 2000 Saturn LS2 V6 3.0L?
Yes. Spectra Premium GMP86A fits the 2000 Saturn LS2 V6 3.0L. For other Saturn years and engines, look in the "Vehicles it fits" section.
Does the Spectra Premium engine oil pan come with a drain plug?
Yes. Spectra Premium GMP86A comes with its drain plug, which has an M14 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.
Is this oil pan baffled, and does it have a dipstick port?
No. This pan is not baffled and has no dipstick port or oil level sensor port. It is a wet-sump pan with the sump at the front.
What damage on an aluminum oil pan means it needs replacing?
A crack, a dent or oil seeping at the pan can mean replacement, and so can stripped drain-plug threads. A shop can inspect the pan from below and find the source.
How many mounting holes does the GMP86A oil pan have?
Spectra Premium GMP86A has 17 mounting holes. It measures 304 mm at its maximum width and 133 mm at its maximum depth.
