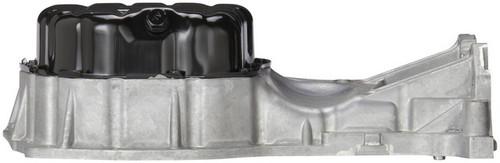

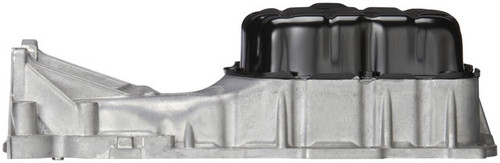

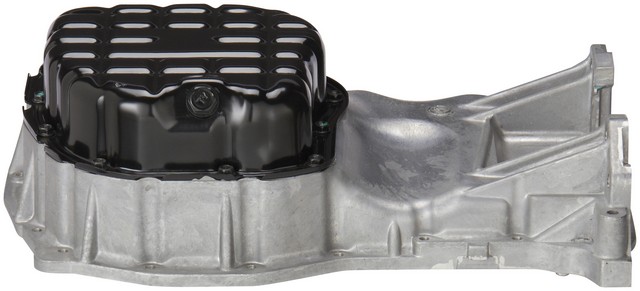

Spectra Premium HYP14A oil pan for the 2002-2005 Hyundai Sonata 4-cylinder 2.4L and other vehicles collects and holds the engine's oil at the bottom of the engine. Its engineering and quality control are aimed at matching or exceeding the performance of the original equipment pan it replaces.
- Cold rolled steel (EDDQ)/aluminum construction with an uncoated finish
- Drain plug included, with an M14 - 1.5 drain thread
- 17 mounting holes
- Wet sump type with the sump at the front
Quick facts
- Part: Spectra Premium HYP14A oil pan
- Also called: engine oil pan
- Fits: 2002-2005 Hyundai Sonata 4-cylinder 2.4L and other vehicles
- Material: Cold rolled steel (EDDQ)/aluminum
- Condition: New
Oil spots on the ground, a dented or cracked pan, or oil seeping along the pan edge can mean a worn engine oil pan. Before you replace it, rule out a loose drain plug, a leaking oil filter or a valve cover leak that runs down onto the pan. A shop can confirm where the oil is coming from.
Fits
This is a direct-fit oil pan replacement for the 2002-2005 Hyundai Sonata 4-cylinder 2.4L, the 2001-2005 Kia Optima 4-cylinder 2.4L and the 2001-2006 Hyundai Santa Fe 4-cylinder 2.4L, with a single pan per vehicle. If your car is not named here, look up your year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Sump location: Front
- Maximum width: 289 mm
- Maximum depth: 71 mm
- Mounting holes: 17
- Drain thread size: M14 - 1.5
- Quantity per vehicle: 1
Build and materials
- Sump type: Wet
- Baffled: No
- Material: Cold rolled steel (EDDQ)/aluminum
- Finish: Uncoated
- Condition: New
- Country of origin: Korea Republic of
In the box
One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310645, 264116, 2152038056, 2152038057, 2152138054, 21552038057, 99656541, NOE99656541, 501216
Frequently Asked Questions
Is the 2002-2005 Hyundai Sonata 4-cylinder 2.4L oil pan this Spectra Premium HYP14A?
Yes. Spectra Premium HYP14A is listed for the 2002-2005 Hyundai Sonata 4-cylinder 2.4L, and that car takes one pan.
Is the 2001-2005 Kia Optima 4-cylinder 2.4L oil pan the same HYP14A listed here?
Yes. The Spectra Premium HYP14A is listed for the 2001-2005 Kia Optima 4-cylinder 2.4L, which also takes one pan.
Does this oil pan come with a drain plug?
Yes. The pan comes with its drain plug, which has an M14 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.
Is this oil pan steel or aluminum?
Its material is listed as cold rolled steel (EDDQ)/aluminum, with an uncoated finish. It measures 289 mm at its maximum width and 71 mm at its maximum depth.
Does this pan have a dipstick port or an oil level sensor port?
No. This oil pan has neither a dipstick port nor an oil level sensor port, and it is not baffled.
