Oil Pan for 2004-2007 Suzuki Aerio - Spectra Premium SZP03B

$199.99

WARNING:California Proposition 65▾

Spectra Premium Engine Oil Pan SZP03B - view 2

Spectra Premium Engine Oil Pan SZP03B - view 3

Spectra Premium Engine Oil Pan SZP03B - view 4

$199.99

Current Stock: 4

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Part number: SZP03B

UPC: 671607016550

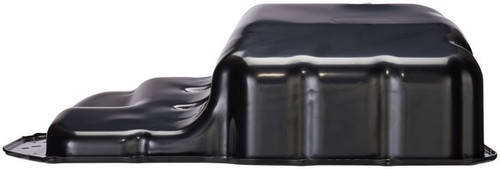

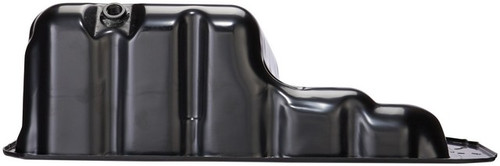

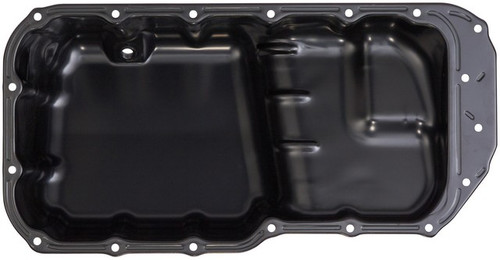

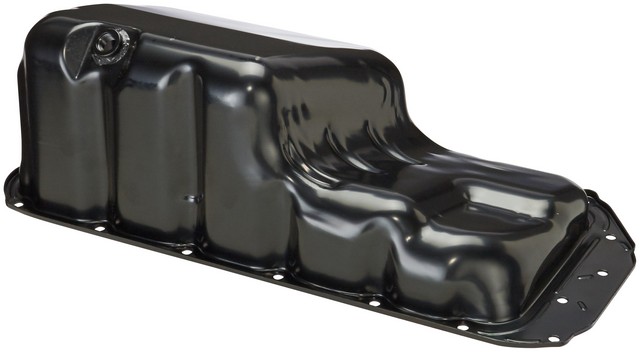

Spectra Premium Engine Oil Pan P/N:SZP03B

$199.99

Description

Spectra Premium SZP03B oil pan for the 2004-2007 Suzuki Aerio 4-cylinder 2.3L holds the engine's oil in the wet sump at the bottom of the engine. The pan is built to meet or exceed the performance of the original equipment it replaces.

Cold Rolled Steel (EDDQ) body with a powder-coated finish
Baffled wet sump design
Sump located at the front of the pan
18 mounting holes

Quick facts

Part: Spectra Premium SZP03B oil pan
Also called: engine oil pan
Fits: 2004-2007 Suzuki Aerio 4-cylinder 2.3L
Material: Cold Rolled Steel (EDDQ)
Condition: New

A leak at the pan, oil spots under the car or a dented or cracked pan can mean it needs replacing. Before you replace it, rule out a loose drain plug or a worn gasket or seal, since either can leak in the same area.

Fits

This is a direct-fit oil pan for the 2004-2007 Suzuki Aerio 4-cylinder 2.3L. The 2004-2007 Suzuki Aerio 4-cylinder 2.3L takes one pan, and this listing is one pan.

Specifications

Fit and size

Quantity per vehicle: 1
Sump location: Front
Maximum width: 245 mm
Maximum depth: 145 mm
Mounting holes: 18
Drain thread size: M14 - 1.5

Build and materials

Type: wet sump, baffled
Material: Cold Rolled Steel (EDDQ)
Finish: Powder coated
Condition: New
Country of origin: China

In the box

One oil pan with a drain plug. The oil pickup, windage tray and crankshaft wiper are not included.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

3312469904732616, 3310653, KSZP7B, 264093, 31150111, 58480, SPISZP03B, 99656431, NOE99656431, 1151062G10, 1151062G11, OP37661

Buyer's Q&A

Frequently Asked Questions

Does the Spectra Premium SZP03B fit the 2004-2007 Suzuki Aerio 4-cylinder 2.3L?

Yes. The Spectra Premium SZP03B is a direct-fit replacement for the 2004-2007 Suzuki Aerio 4-cylinder 2.3L, and that engine takes one pan.

Does the Spectra Premium engine oil pan come with a drain plug?

Yes. The SZP03B includes the drain plug, which has an M14 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.

Is this oil pan baffled, and what sump type is it?

Yes. This oil pan is baffled and is a wet-sump design with the sump at the front. It has no dipstick port and no oil level sensor port.

How can I tell if my oil pan is leaking?

Oil drips under the engine, a wet or dirty pan, or a dent or crack in the pan can mean it needs replacing. A shop can find the exact source of a leak.

How big is the Spectra Premium SZP03B oil pan?

Maximum width is 245 mm and maximum depth is 145 mm. The pan has 18 mounting holes and a Cold Rolled Steel (EDDQ) body.
