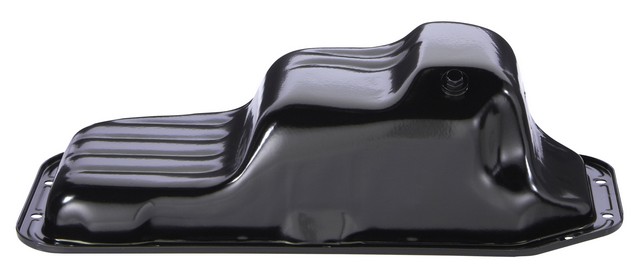

Spectra Premium TOP07A oil pan for the 1990-1991 Toyota 4Runner 4-cylinder 2.4L and other vehicles holds the engine's oil in a wet sump at the rear. This engine oil pan is baffled and powder coated, and its engineering, manufacturing technology and quality control are meant to meet or exceed the performance of the original equipment it replaces.
- Cold Rolled Steel (EDDQ) construction
- Powder-coated finish
- Baffled wet sump with the sump at the rear
- Drain plug included, with an M14 - 1.5 thread
- 18 mounting holes
Quick facts
- Part: Spectra Premium TOP07A oil pan
- Also called: engine oil pan
- Fits: the 1990-1991 Toyota 4Runner 4-cylinder 2.4L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil drips under the engine, a dented or cracked pan, or rust through the metal can mean the pan needs replacing. A loose drain plug, a worn pan gasket or a leaking oil filter can leave oil in the same spot, so trace the leak to its source before you buy.
Fits
It also fits the 1979-1980 Toyota Pickup 4-cylinder 2.2L and the 1981-1995 Pickup 4-cylinder 2.4L, and one pan is all any of these engines needs.
Specifications
Fit and size
- Sump location: Rear
- Maximum width: 254 mm
- Maximum depth: 135 mm
- Mounting holes: 18
- Drain thread size: M14 - 1.5
- Quantity per vehicle: 1
Build and materials
- Sump type: Wet, baffled
- Material: Cold Rolled Steel (EDDQ)
- Finish: Powder coated
- Condition: New
- Country of origin: Canada
In the box
One oil pan with a drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
This part cross-references / interchanges with the following part numbers:
103292, 264327, 56384, SPITOP07A, 501160, 1210135020
Frequently Asked Questions
Is TOP07A an oil pan for the 1990-1991 Toyota 4Runner with the 4-cylinder 2.4L?
Yes. Spectra Premium TOP07A is listed for the 1990-1991 Toyota 4Runner 4-cylinder 2.4L, and that engine takes one pan.
Does this oil pan fit the 1979-1980 Toyota Pickup 4-cylinder 2.2L or the 1981-1995 Pickup 4-cylinder 2.4L?
Yes. Spectra Premium TOP07A is listed for the 1979-1980 Toyota Pickup 4-cylinder 2.2L and the 1981-1995 Pickup 4-cylinder 2.4L, one pan per engine.
Is this Spectra Premium oil pan baffled?
Yes. This pan is a baffled wet sump with the sump at the rear, made of Cold Rolled Steel (EDDQ) with a powder-coated finish.
Does the TOP07A oil pan come with a drain plug?
Yes, a drain plug is included, with an M14 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.
What should I look for on an oil pan that may be leaking?
With the engine off and cool, look for oil drips under the pan, dents, cracks, or rust along the seams and around the drain plug. Any of these is a reason to have the pan looked at promptly.
