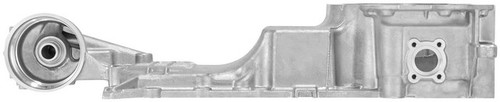

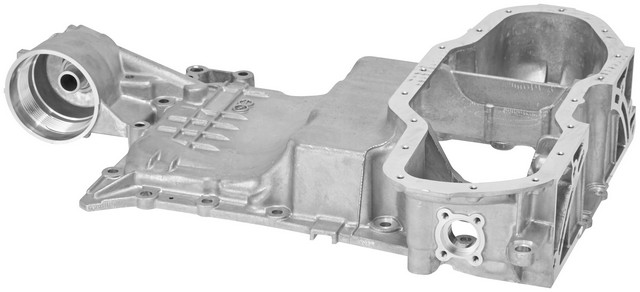

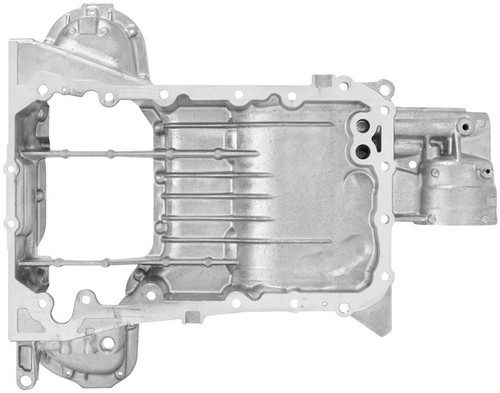

Spectra Premium TOP74A upper oil pan for the 2006-2020 Lexus IS350 V6 3.5L and other vehicles holds the engine oil in a wet sump. The Spectra Premium oil pan collects the oil that drains back down from the engine.
- Aluminum body with an uncoated finish
- Wet sump located at the center of the pan
- 12 mounting holes
- No baffle, dipstick port or oil level sensor port
Quick facts
- Part: Spectra Premium TOP74A oil pan
- Also called: engine oil pan
- Fits: 2006-2020 Lexus IS350 V6 3.5L and other vehicles
- Position: Upper
- Material: Aluminum
- Condition: New
Oil spots where you park, an oil level that keeps dropping between changes, or a low oil pressure warning light can all point to a leaking pan. These signs alone do not prove the pan is at fault, since a loose drain plug can leak the same way.
Fits
The vehicles it fits include the 2006-2020 Lexus IS350 V6 3.5L, the 2013-2018 Lexus GS450h V6 3.5L and the 2015-2018 Lexus RC350 V6 3.5L. It is built to meet or exceed the performance of the original equipment it replaces. If your Lexus is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Upper
- Maximum width: 465 mm
- Maximum depth: 107 mm
- Mounting holes: 12
- Quantity per vehicle: 1
Build and materials
- Material: Aluminum
- Finish: Uncoated
- Condition: New
- Country of origin: United States
In the box
One oil pan. This listing holds one pan, and the car takes one. The drain plug, oil pickup, windage tray and crankshaft wiper are not included.
This part cross-references / interchanges with the following part numbers:
3312469904732540, 3310688, 264278, SPITOP74A, 1210131100, 1210131101, 99658201, NOE99658201, OP37625
Frequently Asked Questions
Does the Spectra Premium TOP74A oil pan fit the 2013-2018 Lexus GS450h V6 3.5L?
Yes. The Spectra Premium TOP74A upper oil pan fits the 2013-2018 Lexus GS450h V6 3.5L, and that vehicle takes one pan.
Does the Spectra Premium engine oil pan come with a drain plug?
No. The Spectra Premium TOP74A ships without a drain plug, oil pickup, windage tray or crankshaft wiper, so plan on getting those separately.
What material and finish does this oil pan have?
This oil pan is aluminum with an uncoated finish.
What are signs of a leaking oil pan?
Oil spots where the car is parked, a falling oil level between changes or a low oil pressure warning light can each have a pan leak behind them. Have it looked at promptly, since running low on oil can damage the engine.
How wide and deep is this upper oil pan?
The Spectra Premium TOP74A has a maximum width of 465 mm and a maximum depth of 107 mm, with 12 mounting holes.
