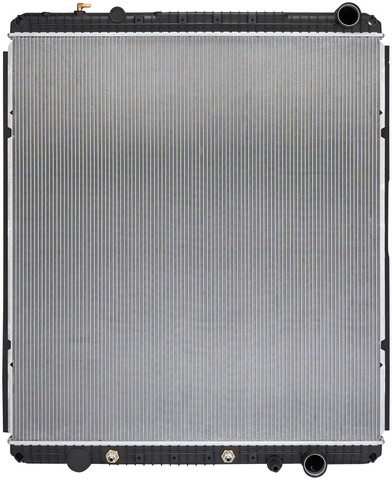

Spectra Premium 2001-1725P radiator for the 2008-2013 Freightliner Cascadia and other vehicles passes engine heat from the coolant to the air. This Spectra Premium radiator is heavy duty and meets or exceeds the performance of the original equipment it replaces.
- Two-row aluminum core, 42.125 in high, 38.5 in wide and 2.1875 in thick
- Plastic tanks with a 2.5 in inlet at the top right and a 2.5 in outlet at the bottom right
- Transmission oil cooler included, plated type with 5 plates, on the fan side
- Transmission oil cooler fittings set 12 in apart
Quick facts
- Part: Spectra Premium 2001-1725P radiator
- Fits: 2008-2013 Freightliner Cascadia and other vehicles
- Material: Aluminum core, plastic tanks
- Condition: New
Coolant leaking from the core or tanks, or an engine that runs hotter than normal, can mean the radiator is failing. Before you replace the radiator, rule out a sticking thermostat, a leaking hose, a weak radiator cap and the cooling fan, since any of them can bring on similar signs.
Fits
The 2008-2013 Freightliner Cascadia, the 2008-2011 Freightliner Columbia and the 2008-2011 Freightliner Century Class all take this radiator, along with other vehicles. The 2008-2013 Freightliner Cascadia takes one radiator, and this listing is a single radiator. Another year or engine? Look in the "Vehicles it fits" section on this page.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core height: 42.125 in
- Core width: 38.5 in
- Core thickness: 2.1875 in
- Inlet diameter: 2.5 in, top right
- Outlet diameter: 2.5 in, bottom right
- Transmission oil cooler fitting spacing: 12 in
Build and materials
- Core: aluminum, 2 rows
- Tank material: plastic
- Transmission oil cooler: plated, 5 plates, fan side
- Condition: New
- Country of origin: China
In the box
One radiator with its transmission oil cooler and mounting hardware. An engine oil cooler is not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this a Freightliner Cascadia radiator for the 2008-2013 model years?
Yes. Spectra Premium 2001-1725P is listed for the 2008-2013 Freightliner Cascadia, and the "Vehicles it fits" section gives each year with its engine.
Is this a Freightliner Cascadia radiator replacement for the 2008-2013 model with the L6-14.8L engine?
Yes. Spectra Premium 2001-1725P is listed for the 2008-2013 Freightliner Cascadia with the L6-14.8L engine.
What are the inlet and outlet sizes on this radiator?
The inlet is 2.5 in in diameter at the top right, and the outlet is 2.5 in at the bottom right. The core measures 42.125 in high by 38.5 in wide.
Does this radiator come with its transmission oil cooler and mounting hardware?
Yes. This radiator includes a plated transmission oil cooler and mounting hardware. An engine oil cooler is not included.
What can a leaking or failing 2001-1725P radiator look like?
With the engine off and cool, look for coolant stains, seepage or cracks on the core and tanks. Coolant that keeps dropping can also point to a radiator problem, and a shop can pressure-test the system.
