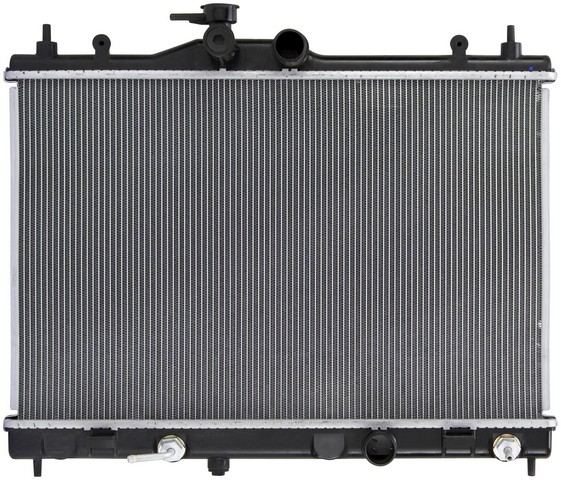

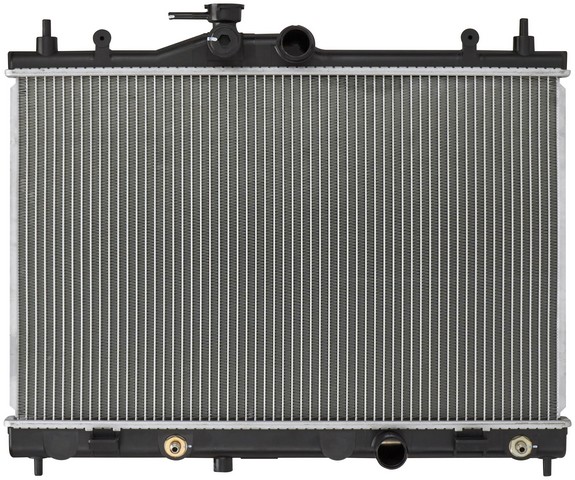

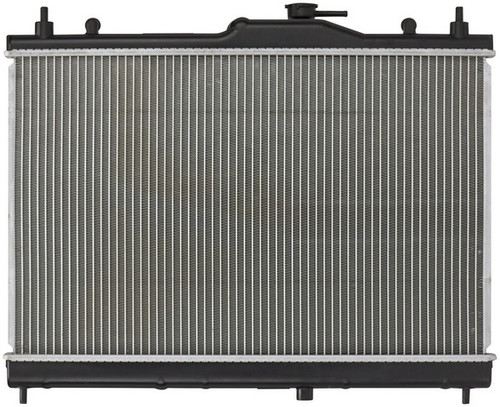

Spectra Premium CU13002 radiator for the 2007-2012 Nissan Versa 4-cylinder 1.8L and the 2012 Versa 4-cylinder 1.6L carries engine coolant through its core to shed engine heat. The Spectra Premium radiator is a down-flow design, with coolant entering at the top right and leaving at the bottom right.
- Aluminum core with one row, 23.125 in wide and 14.9375 in high
- Plastic tanks
- Internal concentric transmission oil cooler with 22 plates and 8 mm hose barb fittings
- Inlet and outlet openings each have a diameter of 1.375 in
Quick facts
- Part: Spectra Premium CU13002 radiator
- Fits: 2007-2012 Nissan Versa 4-cylinder 1.8L and the 2012 Versa 4-cylinder 1.6L
- Material: Aluminum core, plastic tanks
- Condition: New
Coolant leaks at the tanks or core, a temperature gauge that climbs, or a coolant level that keeps dropping can all point to a radiator problem. Before you replace this radiator, rule out the thermostat, hoses and cap, since a leak or overheating can start in any of them. Check the coolant level only with the engine cool.
Fits
This radiator fits the 2007-2012 Nissan Versa 4-cylinder 1.8L and the 2012 Versa 4-cylinder 1.6L. Its structure and design are built to carry the same durability and expectations as the OE radiator.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core: 23.125 in wide, 14.9375 in high, 0.625 in thick
- Core rows: 1
- Inlet diameter: 1.375 in
- Outlet diameter: 1.375 in
- Inlet header: 24.25 in long, 1.5625 in wide
- Outlet header: 24.25 in long, 1.9375 in wide
- Inlet location: top right
- Outlet location: bottom right
- Transmission oil cooler distance between fittings: 14.75 in
Build and materials
- Flow type: down flow
- Core material: aluminum
- Tank material: plastic
- Transmission oil cooler: internal, concentric, 22 plates
- Transmission oil cooler fittings: 8 mm hose barb
- Condition: New
- Country of origin: China
In the box
One radiator with its built-in transmission oil cooler. This listing holds one radiator, and the vehicle takes one. A frame and an engine oil cooler are not included.
Interchange: 17788000045933620 · 8013002 · RK1198 · 2983 · 3348 · 3499 · C13002 · 0ANS5839 · 13002 · 2213418 · 21410EL00A · 21410ZW40A · 21460EM30A · 21460ZW40A · B13002 · 13002C · RAD13002 · A13002 · 2481026 · 13002DPI · NI3010218 · 2501 · 4113002 · 438458 · RA13002C
This part cross-references / interchanges with the following part numbers:
17788000045933620, 8013002, RK1198, 2983, 3348, 3499, C13002, 0ANS5839, 13002, 2213418, 21410EL00A, 21410ZW40A, 21460EM30A, 21460ZW40A, B13002, 13002C, RAD13002, A13002, 2481026, 13002DPI, NI3010218, 2501, 4113002, 438458, RA13002C
Frequently Asked Questions
Is this Nissan Versa radiator the right one for the 2012 Versa 4-cylinder 1.6L?
Yes. Spectra Premium CU13002 fits the 2012 Nissan Versa 4-cylinder 1.6L and the 2007-2012 Versa 4-cylinder 1.8L.
Does this radiator include a frame or an engine oil cooler?
No. This radiator comes without a frame and without an engine oil cooler. It does include an internal transmission oil cooler.
What size are the inlet and outlet on this aluminum-core radiator?
Spectra Premium CU13002 has a 1.375 in inlet and a 1.375 in outlet. The inlet sits at the top right and the outlet at the bottom right.
What kind of transmission oil cooler is built into this radiator?
The internal transmission oil cooler is concentric, with 22 plates and 8 mm hose barb fittings that sit 14.75 in apart.
Can this radiator replace a radiator numbered 21460EM30A?
Yes. 21460EM30A is on the cross-reference list for Spectra Premium CU13002, along with 21410EL00A and 21410ZW40A.
