Radiator for 2010-2023 Lexus GX460 - Spectra Premium CU13210

$353.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13210
    UPC: 671607788150
    Condition: New
    Weight: 49.98 LBS
    Item Package Quantity: 1
    $353.99
    Adding to cart… The item has been added

    Have questions?

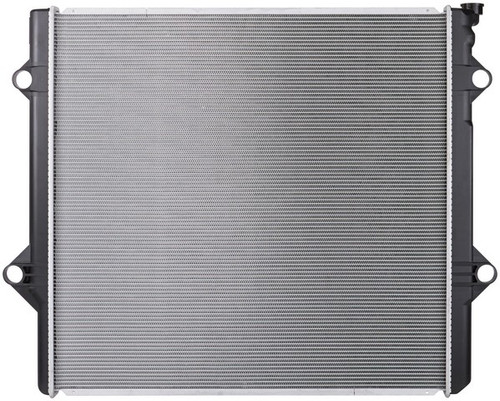

    Spectra Premium Radiator P/N:CU13210
    Spectra Premium Radiator P/N:CU13210
    $353.99
    $353.99

    Spectra Premium CU13210 radiator for the 2010-2023 Lexus GX460 V8 4.6L carries hot engine coolant through its core so the engine can shed heat. Its structure and design are built to the same durability expectations as the OE radiator.

    • Aluminum core with one row, set up for cross flow
    • Plastic tanks
    • Internal transmission oil cooler with 5 plates and 10mm hose barb fittings
    • Inlet at the top left and outlet at the bottom right, each 1.5625 in in diameter
    • Saddle mounting type

    Quick facts

    • Part: Spectra Premium CU13210 radiator
    • Fits: 2010-2023 Lexus GX460 V8 4.6L
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Coolant stains at the core or tanks, a coolant level that keeps dropping, or an engine that runs hot can mean the radiator is wearing out. Those signs alone do not prove the radiator is the problem, since a stuck thermostat can also make an engine overheat. If the radiator is the cause, this one replaces it.

    Fits

    This radiator is a direct-fit replacement for the 2010-2023 Lexus GX460 V8 4.6L, which takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 25.5625 in
    • Core width: 25 in
    • Core thickness: 1 in
    • Core rows: 1
    • Inlet diameter: 1.5625 in
    • Outlet diameter: 1.5625 in
    • Inlet and outlet header length: 26.125 in, width 2 in
    • Inlet location: top left
    • Outlet location: bottom right
    • Mounting type: saddle

    Build and materials

    • Condition: New
    • Core material: aluminum
    • Tank material: plastic
    • Flow type: cross flow
    • Transmission oil cooler: internal, plated, 5 plates
    • Transmission oil cooler fittings: 10mm hose barb, 9.8125 in apart
    • Country of origin: Indonesia

    In the box

    One radiator with its internal transmission oil cooler. A frame and an engine oil cooler are not included.

    Interchange: 10182343109171045 · 8013210 · 13210 · 2030 · 0ATY6344 · 2219263 · C13210 · 13210C · RAD13210 · A13210 · 1640038250 · 1640038251 · 1640038252 · 1640038253 · 1640038290 · 646818 · CR13210 · 2413210 · LX3010146 · 1955 · 4113210 · RA13210C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    10182343109171045, 8013210, 13210, 2030, 0ATY6344, 2219263, C13210, 13210C, RAD13210, A13210, 1640038250, 1640038251, 1640038252, 1640038253, 1640038290, 646818, CR13210, 2413210, LX3010146, 1955, 4113210, RA13210C

    Frequently Asked Questions

    Is this the Lexus GX460 radiator for the 2010-2023 V8 4.6L?

    Yes. Spectra Premium CU13210 is a direct-fit radiator for the 2010-2023 Lexus GX460 V8 4.6L, and that vehicle takes one.

    Does this radiator come with a transmission oil cooler and a frame?

    It has an internal transmission oil cooler with 5 plates and 10mm hose barb fittings. A frame and an engine oil cooler are not included.

    What size are the inlet and outlet on the CU13210 radiator?

    Spectra Premium CU13210 has an inlet at the top left and an outlet at the bottom right, each 1.5625 in in diameter. The core is aluminum and the tanks are plastic.

    How can I tell if a radiator is going bad?

    Coolant stains around the core or tanks, a coolant level that keeps dropping, or an engine that runs hot can mean the radiator is failing. Check the coolant level only when the engine is cool.

    Does Spectra Premium CU13210 interchange with 1640038250?

    Yes. 1640038250 is one of the numbers this radiator replaces, along with 13210 and 2413210.
