Radiator for 2012-2018 Ford Focus - Spectra Premium CU13219

$117.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13219
    UPC: 671607779776
    Condition: New
    Weight: 28.39 LBS
    Item Package Quantity: 1
    $117.99
    Adding to cart… The item has been added

    Have questions?

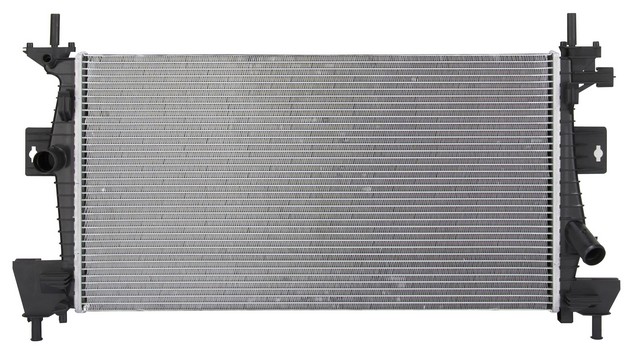

    Spectra Premium Radiator P/N:CU13219
    Spectra Premium Radiator P/N:CU13219
    $117.99
    $117.99

    Spectra Premium CU13219 radiator for the 2012-2018 Ford Focus moves engine coolant through an aluminum core to shed engine heat. This Spectra Premium radiator is built to the same durability and expectations as the OE.

    • Aluminum core with plastic tanks and a single core row
    • Cross-flow design with the inlet at the top left and the outlet at the bottom right
    • Post mounting type
    • Inlet and outlet diameters of 1.3125 inches each

    Quick facts

    • Part: Spectra Premium CU13219 radiator
    • Fits: 2012-2018 Ford Focus
    • Material: Aluminum core, plastic tanks
    • Condition: New

    A worn or failing radiator can show up as coolant leaks at the tanks, a coolant level that keeps dropping or an engine that runs hot. Before you replace the radiator, rule out a loose hose, the radiator cap and the thermostat, since a leak or overheating can start in any of them. Check the coolant level only with the engine cool.

    Fits

    This radiator is a direct-fit replacement for the 2012-2018 Ford Focus.

    Specifications

    Fit and size

    • Core size: 26.375 in high, 14.5 in wide, 0.625 in thick
    • Core rows: 1
    • Inlet and outlet diameter: 1.3125 in each
    • Inlet and outlet headers: 14.6875 in long, 1.375 in wide
    • Inlet location: top left; outlet location: bottom right
    • Mounting type: Post
    • Quantity per vehicle: 1

    Build and materials

    • Core material: Aluminum
    • Tank material: Plastic
    • Flow type: Cross flow
    • No built-in engine or transmission oil cooler
    • Condition: New
    • Country of origin: Cambodia

    In the box

    This listing holds one radiator, and the 2012-2018 Ford Focus takes one. A frame, engine oil cooler and transmission oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100019, 103670, 10182345256654442, 8013219, 2611, 3595, C13219, 0AFD6053, 13219, 2219031, 918166, CV6Z8005A, 13219C, RAD13219, A13219, RAD81, 69237, FO3010301, 1923, 4113219, 438403, RA13219C, 376390

    Frequently Asked Questions

    Is this a 2012 Ford Focus radiator, or only for later years?

    Yes. Spectra Premium CU13219 fits the 2012-2018 Ford Focus, so the 2012 model year is covered.

    Does Spectra Premium CU13219 include a frame or oil coolers?

    No. Spectra Premium CU13219 is one radiator without a frame, engine oil cooler or transmission oil cooler, and it has no built-in oil cooler.

    What size are the inlet and outlet on this radiator?

    Both the inlet and the outlet are 1.3125 inches in diameter. The inlet sits at the top left and the outlet at the bottom right of the cross-flow core.

    Is the core of this radiator aluminum or plastic?

    The core is aluminum and the tanks are plastic. The core is 26.375 inches high, 14.5 inches wide and 0.625 inches thick.

    How can I spot a leaking radiator without starting the engine?

    With the engine off and cool, look for wet spots, dried coolant residue or cracks on the tanks and core. A shop can pressure-test the cooling system if you can't find the source.
