Radiator for 2011-2016 Ford F-250 Super Duty & More - Spectra Premium CU13230

$326.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13230
    UPC: 671607780598
    Condition: New
    Weight: 38.00 LBS
    Item Package Quantity: 1
    $326.99
    Adding to cart… The item has been added

    Have questions?

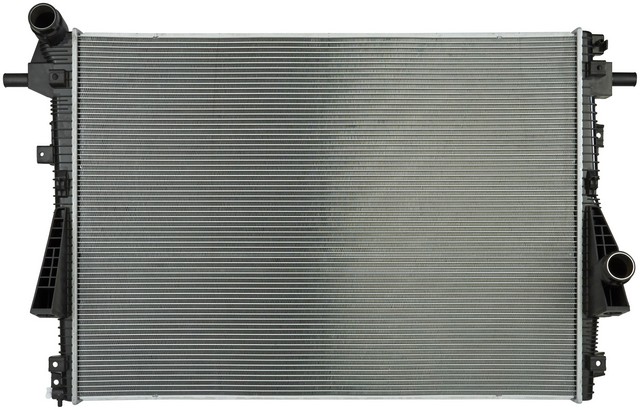

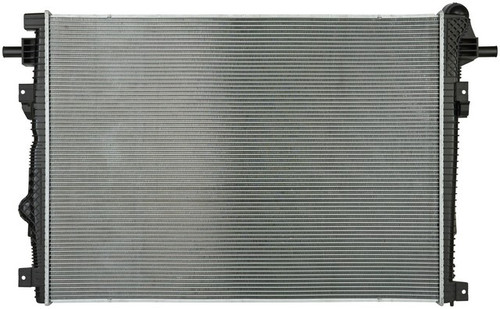

    Spectra Premium Radiator P/N:CU13230
    Spectra Premium Radiator P/N:CU13230
    $326.99
    $326.99

    Spectra Premium CU13230 radiator for the 2011-2016 Ford F-250 Super Duty V8 6.7L and other vehicles moves engine heat out of the coolant. The structure and design of this Spectra Premium radiator are built for the durability expected of the OE.

    • Two-row aluminum core in a cross-flow layout
    • Plastic tank material
    • Flange mounting type
    • Inlet at the top left and outlet at the bottom right

    Quick facts

    • Part: Spectra Premium CU13230 radiator
    • Fits: 2011-2016 Ford F-250 Super Duty V8 6.7L and other vehicles
    • Material: Aluminum core, plastic tank
    • Condition: New

    A worn or failing radiator can show coolant leaks around the tanks or core, coolant loss, or an engine that runs hot. These signs alone do not prove the radiator is the problem, since a faulty thermostat is another common cause of overheating.

    Fits

    The 2011-2016 Ford F-350 Super Duty V8 6.7L and the 2011-2016 Ford F-450 Super Duty V8 6.7L take this radiator too, along with other vehicles; each truck takes one, and the listing is a single radiator. If your truck is not named here, find its year and engine in the "Vehicles it fits" section of this page.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 38.4375 in high, 27.5 in wide, 1.75 in thick
    • Inlet diameter: 2.25 in
    • Outlet diameter: 2.25 in
    • Inlet and outlet header: 28.5625 in long, 2.5 in wide

    Build and materials

    • Core material: Aluminum
    • Tank material: Plastic
    • Core rows: 2
    • Flow type: Cross flow
    • Mounting type: Flange
    • Condition: New
    • Country of origin: Cambodia

    In the box

    One radiator. A frame, an engine oil cooler and a transmission oil cooler are not included.

    Interchange: 103740 · 103743 · 8013230 · AR13230 · 13230 · 3601 · C13230 · 2219475 · BC3Z8005C · BC3Z8005E · BC3Z8005G · BC3Z8005K · 13230C · RAD13230 · A13230 · RAD61 · 2481260 · 1323040DPI · FO3010335 · 220121601 · 4113230 · RA13230C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    103740, 103743, 8013230, AR13230, 13230, 3601, C13230, 2219475, BC3Z8005C, BC3Z8005E, BC3Z8005G, BC3Z8005K, 13230C, RAD13230, A13230, RAD61, 2481260, 1323040DPI, FO3010335, 220121601, 4113230, RA13230C

    Frequently Asked Questions

    Is this the Ford F-250 Super Duty radiator for 2011-2016 trucks with the V8 6.7L?

    Yes. Spectra Premium CU13230 fits the 2011-2016 Ford F-250 Super Duty V8 6.7L, and the truck takes one radiator.

    Will this Ford F-450 Super Duty radiator fit a 2011-2016 truck with the V8 6.7L?

    Yes. The 2011-2016 Ford F-450 Super Duty V8 6.7L is among the trucks that take this radiator, one per truck.

    Does this radiator come with a transmission oil cooler?

    No. Spectra Premium CU13230 has no internal transmission oil cooler or engine oil cooler, and no frame is included.

    What size are the inlet and outlet on the CU13230 radiator?

    Both the inlet and the outlet are 2.25 inches in diameter. The core is 38.4375 in high, 27.5 in wide and 1.75 in thick, with two rows.

    Is coolant staining on the plastic tanks a sign this radiator needs replacing?

    It can be. With the engine cool, look for wet spots or crusty residue at the tank seams or core; a shop can pressure-test the cooling system to confirm a leak.
