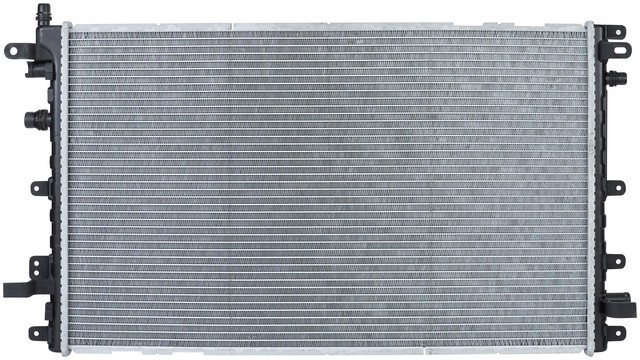

Hold your engine at a safe operating temperature with the Spectra Premium Radiator CU13302, a cross-flow radiator that drops in for the 2014-2016 Cadillac ELR and 2011-2015 Chevrolet Volt with the L4-1.4L engine. It transfers heat from the coolant to the passing air so the engine stays within its normal temperature range. Spectra Premium builds this radiator to undertake the same durability and expectations as the OE.
Country of origin: China.
Interchange: 3658 · 13302 · 20925998 · 22765637 · 23318716 · 13302C · 630772 · 1980 · 4113302. Manufacturer part number CU13302.
This part cross-references / interchanges with the following part numbers:
What vehicles does the CU13302 radiator fit?
It fits the 2014-2016 Cadillac ELR and the 2011-2015 Chevrolet Volt with the L4-1.4L engine. Confirm your engine against the Buyer's Guide before ordering.
What is the core made of?
The core is aluminum and the tanks are plastic, in a cross-flow configuration with a single-row core (Core Row Quantity 1).
What are the inlet and outlet details?
The inlet is at the top left and the outlet is at the top right, each 0.875 in in diameter, mounted on 17.3125 in x 1.5 in headers.
Is a frame or fan shroud included?
No, the frame is not included. Consult the vehicle service information and transfer or replace mounting parts as directed by the service procedure.
How large is the core?
The core measures 26.5625 in high by 16.125 in wide with a 0.625 in core thickness. It is a single-row, cross-flow aluminum core.
