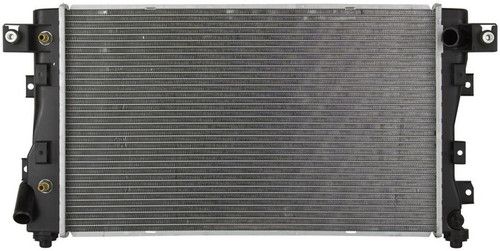

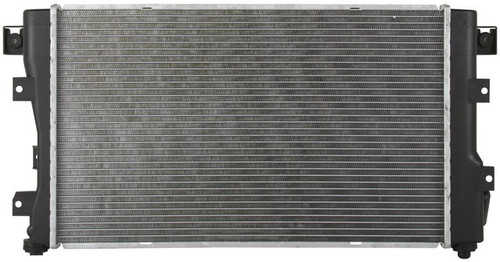

Spectra Premium CU1390 radiator for the 1993-1997 Dodge Intrepid V6 3.3L or 3.5L and other vehicles cools the engine by moving heat out of the coolant. Its structure and design are built for the same durability and expectations as the OE.
- Aluminum core with one row
- Plastic tanks on a cross-flow radiator
- Internal transmission oil cooler built into the radiator
- Bottom post and top flange mounting
Quick facts
- Part: Spectra Premium CU1390 radiator
- Fits: 1993-1997 Dodge Intrepid V6 3.3L or 3.5L and other vehicles
- Material: Aluminum core, plastic tanks
- Condition: New
Coolant stains at the tanks or core seams, steam, an overheating gauge or coolant that keeps dropping can mean a radiator problem. Look for stains and cracks only with the engine off and cool. Hoses, the thermostat, the radiator cap, the water pump or the cooling fan can cause overheating too, so find the cause before buying a radiator.
Fits
This radiator is listed for a wide range of Chrysler, Dodge and Eagle models, including the 1993-1996 Chrysler Concorde V6 3.3L, the 1993-1997 Concorde V6 3.5L and the 1993-1997 Chrysler Intrepid V6 3.3L or 3.5L, and each one takes a single radiator. If your car is not named here, open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Core height: 25 in
- Core width: 15.0625 in
- Core thickness: 1.25 in
- Core rows: 1
- Inlet diameter: 1.25 in, located bottom left
- Outlet diameter: 1.25 in, located bottom right
- Inlet and outlet header: 15.625 in long, 2.375 in wide
- Quantity per vehicle: 1
Build and materials
- Core material: aluminum
- Tank material: plastic
- Flow type: cross flow
- Mounting type: bottom post / top flange
- Transmission oil cooler: internal, concentric, 10mm hose barb fittings, 10 in between fittings
- Condition: new
- Country of origin: China
In the box
One radiator with its internal transmission oil cooler. A frame and an engine oil cooler are not included.
Frequently Asked Questions
Is this the right Intrepid radiator for a 1993-1997 Dodge Intrepid V6 3.3L or 3.5L?
Yes. Spectra Premium CU1390 is listed for the 1993-1997 Dodge Intrepid with either the V6 3.3L or the V6 3.5L, and each car takes one radiator.
Does the Spectra Premium CU1390 radiator come with a frame?
No. A frame and an engine oil cooler are not included. The Spectra Premium CU1390 comes with its internal transmission oil cooler.
What size are the inlet and outlet on this radiator?
Both measure 1.25 in in diameter. The inlet is at the bottom left and the outlet is at the bottom right.
Does this radiator have a transmission oil cooler built in?
Yes. It has an internal concentric transmission oil cooler with 10mm hose barb fittings, 10 in apart.
How can I tell if my radiator is leaking?
Wet spots or coolant stains at the tanks and core seams, seen with the engine off and cool, or a coolant level that keeps dropping can mean a leak. A shop can pressure test the system.
