Radiator for 2000-2005 Ford Excursion & More - Spectra Premium CU2171

$245.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2171
    UPC: 671607730364
    Condition: New
    Weight: 44.73 LBS
    Item Package Quantity: 1
    $245.99
    Adding to cart… The item has been added

    Have questions?

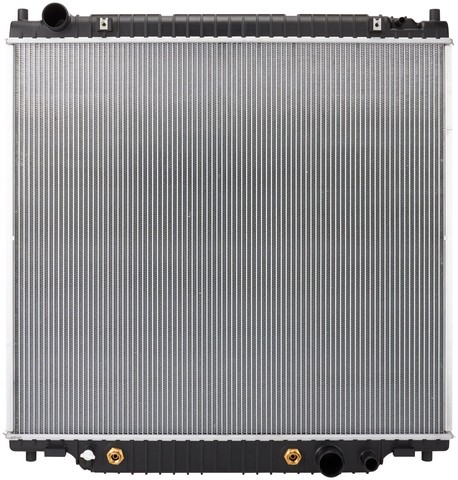

    Spectra Premium Radiator P/N:CU2171
    Spectra Premium Radiator P/N:CU2171
    $245.99
    $245.99

    Spectra Premium CU2171 radiator for the 2000-2003 Ford Excursion V8 7.3L, the 2000-2005 Excursion V10 6.8L and other vehicles cools engine coolant by passing it through its core. The Spectra Premium radiator takes hot coolant in at the inlet and returns it to the engine through the outlet once the core has cooled it.

    • Aluminum core with two rows, 26.5 in high by 29.4375 in wide
    • Plastic tanks with 1.75 in inlet and outlet diameters
    • Down-flow layout with the inlet at the top left and the outlet at the bottom right
    • Built-in transmission oil cooler with five plates and 5/8-18 UNF female fittings
    • Post mounting type

    Quick facts

    • Part: Spectra Premium CU2171 radiator
    • Fits: the 2000-2003 Ford Excursion V8 7.3L, the 2000-2005 Excursion V10 6.8L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    A coolant leak, an engine that runs hot or a coolant level that keeps dropping can mean the radiator needs replacing. These signs alone don't prove the radiator is at fault, since a stuck thermostat is another common source of overheating.

    Fits

    This radiator also fits the 1999-2003 Ford F-250 Super Duty V8 7.3L, the 1999-2004 F-250 Super Duty V10 6.8L, the 1999-2003 Ford F-350 Super Duty V8 7.3L, the 1999-2004 F-350 Super Duty V10 6.8L and many other vehicles. The 2000-2003 Ford Excursion V8 7.3L takes one radiator.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 26.5 in high, 29.4375 in wide, 1.75 in thick
    • Core rows: 2
    • Inlet and outlet diameter: 1.75 in each
    • Inlet and outlet header: 30.5 in long, 3.125 in wide
    • Inlet location: top left; outlet location: bottom right
    • Transmission cooler fittings: 5/8-18 UNF female, 12 in apart
    • Mounting type: post

    Build and materials

    • Flow type: down flow
    • Core material: aluminum
    • Tank material: plastic
    • Transmission oil cooler: built in, plated type, 5 plates
    • Condition: New
    • Country of origin: Cambodia

    In the box

    One radiator with a built-in transmission oil cooler. A frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this Ford Excursion radiator right for a 2000-2003 Ford Excursion V8 7.3L?

    Yes, Spectra Premium CU2171 fits the 2000-2003 Ford Excursion V8 7.3L, which takes one radiator.

    Does this work as a Ford Excursion radiator replacement on a 2000-2005 Ford Excursion V10 6.8L?

    Yes, Spectra Premium CU2171 fits the 2000-2005 Ford Excursion V10 6.8L. For a different Ford, enter its year and engine in the "Vehicles it fits" section.

    Does this radiator come with a transmission oil cooler?

    Yes, Spectra Premium CU2171 has a built-in transmission oil cooler with 5/8-18 UNF female fittings. A frame and an engine oil cooler are not included.

    Which side are the inlet and outlet on this down-flow radiator?

    The inlet is at the top left and the outlet at the bottom right, each 1.75 in in diameter. The core measures 26.5 in high, 29.4375 in wide and 1.75 in thick.

    Is this Spectra Premium radiator built to OE durability?

    Yes, the structure and design of Spectra Premium CU2171 are built to take on the same durability and expectations as the OE radiator.
