Radiator for 2001-2002 Chevrolet Silverado 2500 & More - Spectra Premium CU2315

$258.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2315
    UPC: 671607741469
    Condition: New
    Weight: 36.39 LBS
    Item Package Quantity: 1
    $258.99
    Adding to cart… The item has been added

    Have questions?

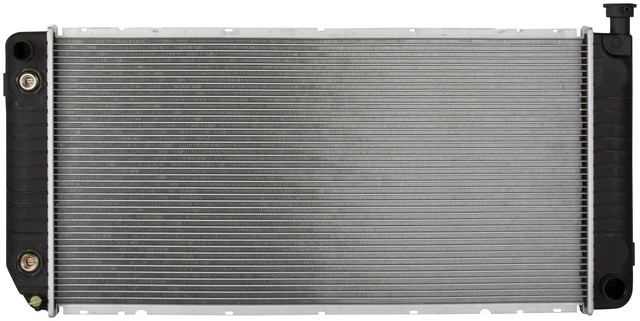

    Spectra Premium Radiator P/N:CU2315
    Spectra Premium Radiator P/N:CU2315
    $258.99
    $258.99

    Spectra Premium CU2315 radiator for the 2001-2002 Chevrolet Silverado 2500 V8 5.7L and other vehicles carries heat away from the engine coolant. Its structure and design are built for the same durability and expectations as the OE.

    • Aluminum core with plastic tanks
    • Cross-flow layout with a single-row core
    • Internal engine oil cooler with 6 plates and M20 - 1.5 female fittings
    • Saddle mounting, with the inlet at the top left and the outlet at the bottom right
    • Inlet diameter of 1.3125 in and outlet diameter of 1.5625 in

    Quick facts

    • Part: Spectra Premium CU2315 radiator
    • Fits: 2001-2002 Chevrolet Silverado 2500 V8 5.7L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    A radiator that is failing can show up as coolant leaks at the tanks or core, a temperature gauge that climbs, or coolant that keeps dropping (check the level only with the engine cool). Before you replace the radiator, rule out a loose hose, a bad cap or a faulty thermostat or water pump, since those can cause similar signs.

    Fits

    The 2001-2002 Chevrolet Silverado 2500 V8 5.7L, the 1995-1998 Chevrolet C1500 V8 5.0L or 5.7L and the 1996-1998 C1500 6-cylinder 4.1L, and the 1995-1998 Chevrolet K1500 V8 5.0L or 5.7L take this radiator, and so do many other Chevrolet and GMC models. Driving something else? Find your year, model and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 34.0625 in
    • Core width: 16.875 in
    • Core thickness: 1 in, 1 row
    • Inlet diameter: 1.3125 in
    • Outlet diameter: 1.5625 in
    • Inlet and outlet headers: 18.4375 in long, 3.1875 in wide
    • Oil cooler fittings distance apart: 11.5 in
    • Inlet location: Top left
    • Outlet location: Bottom right

    Build and materials

    • Type: Cross flow
    • Core material: Aluminum
    • Tank material: Plastic
    • Mounting type: Saddle
    • Engine oil cooler: Internal, plated, 6 plates
    • Condition: New
    • Country of origin: Canada

    In the box

    One radiator with the engine oil cooler built in. A frame and a transmission oil cooler are not included. This listing holds one radiator, and the vehicle takes one.

    Interchange: 21005 · 21006 · 8011522 · 2315 · 0AAS5661 · 2316 · RA1184 · RA1186 · B2315 · 52481438 · 52481439 · 52481443 · RAD2315 · 2709 · A231628N · 1520 · 412315 · 412316 · 438077 · 438085 · 9600 · 9576

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    21005, 21006, 8011522, 2315, 0AAS5661, 2316, RA1184, RA1186, B2315, 52481438, 52481439, 52481443, RAD2315, 2709, A231628N, 1520, 412315, 412316, 438077, 438085, 9600, 9576

    Frequently Asked Questions

    Does this C1500 radiator fit a 1995-1998 Chevrolet with the V8 5.0L or 5.7L?

    Yes. Spectra Premium CU2315 fits the 1995-1998 Chevrolet C1500 V8 5.0L or 5.7L and the 1996-1998 C1500 6-cylinder 4.1L. For another year or engine, look in the "Vehicles it fits" section.

    Is the CU2315 a Chevy K1500 radiator for the 1995-1998 model with a V8 5.0L or 5.7L?

    Yes. Spectra Premium CU2315 fits the 1995-1998 Chevrolet K1500 V8 5.0L or 5.7L. The inlet is at the top left and the outlet at the bottom right.

    Does this Spectra Premium radiator have an engine oil cooler built in?

    Yes. This radiator has an internal engine oil cooler with 6 plates and M20 - 1.5 female fittings. It has no internal transmission oil cooler.

    Does the CU2315 radiator come with a frame or a transmission oil cooler?

    No. This radiator does not include a frame or a transmission oil cooler. The engine oil cooler is built into the radiator.

    What are the core size and material of this radiator?

    The core is aluminum, 34.0625 in high, 16.875 in wide and 1 in thick, in a single row. The tanks are plastic.
