Radiator for 2000-2006 Toyota Tundra - Spectra Premium CU2321

$217.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2321
    UPC: 671607731026
    Condition: New
    Weight: 51.46 LBS
    Item Package Quantity: 1
    $217.99
    Adding to cart… The item has been added

    Have questions?

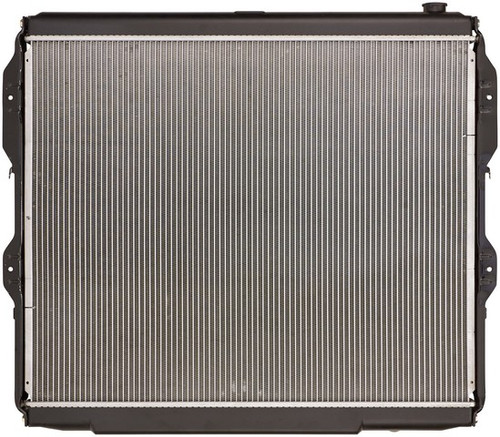

    Spectra Premium Radiator P/N:CU2321
    Spectra Premium Radiator P/N:CU2321
    $217.99
    $217.99

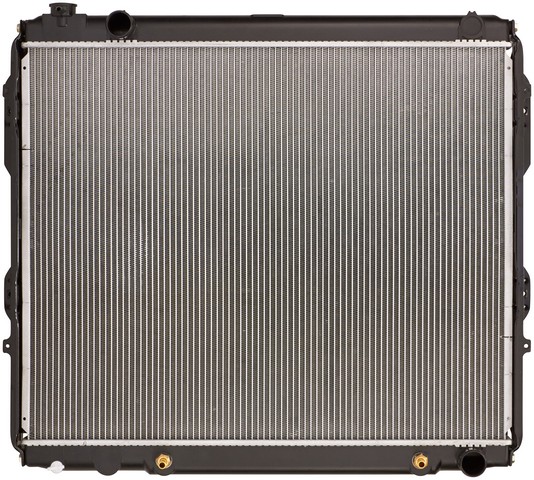

    Spectra Premium CU2321 radiator for the 2000-2006 Toyota Tundra V8 4.7L carries engine coolant through its core to release engine heat. Its structure and design are built for the same durability and expectations as the OE radiator.

    • Single-row aluminum core with plastic tanks
    • Down-flow layout with the inlet at the top left and the outlet at the bottom right
    • Built-in concentric transmission oil cooler with 10mm hose barb fittings
    • Frame mounting type

    Quick facts

    • Part: Spectra Premium CU2321 radiator
    • Fits: 2000-2006 Toyota Tundra V8 4.7L
    • Material: Aluminum core, plastic tanks
    • Condition: New

    A leaking core, coolant stains or an engine that runs hot can mean the radiator is worn, though a hose, the thermostat or the water pump can also be behind overheating. With the engine cool, look over the core and tanks for wet spots, cracks or corrosion; a shop can pressure-test the system to find the cause first.

    Fits

    It fits the 2000-2006 Toyota Tundra V8 4.7L, which takes one radiator.

    Specifications

    Fit and size

    • Core size: 27.5 inches wide, 22.625 inches high, 1.25 inches thick
    • Core rows: 1
    • Inlet and outlet diameter: 1.5625 inches each
    • Inlet and outlet header: 28.375 inches long, 2.25 inches wide each
    • Transmission oil cooler fitting spacing: 14.75 inches
    • Quantity per vehicle: 1
    • Mounting type: Frame

    Build and materials

    • Core material: Aluminum
    • Tank material: Plastic
    • Flow type: Down flow
    • Transmission oil cooler: Internal, concentric
    • Condition: New
    • Country of origin: Cambodia

    In the box

    One radiator with its built-in transmission oil cooler. The radiator frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Will the Spectra Premium CU2321 radiator fit the 2000-2006 Toyota Tundra V8 4.7L?

    Yes. Spectra Premium CU2321 is listed for the 2000-2006 Toyota Tundra V8 4.7L, and that truck takes one radiator.

    Does the Spectra Premium CU2321 have a built-in transmission oil cooler?

    Yes, the Spectra Premium CU2321 has an internal concentric transmission oil cooler with 10mm hose barb fittings spaced 14.75 inches apart; an engine oil cooler is not included.

    Is this radiator all aluminum, or are the tanks plastic?

    The core is aluminum and the tanks are plastic. The single-row core measures 27.5 inches wide, 22.625 inches high and 1.25 inches thick.

    Does this radiator come with its mounting frame?

    No, the frame is not included; this listing is the radiator with its built-in transmission oil cooler.

    What size are the inlet and outlet connections on this radiator?

    The inlet and outlet are each 1.5625 inches in diameter. The inlet sits at the top left and the outlet at the bottom right.
