Radiator for 1999-2013 Chevrolet Silverado 1500 & More - Spectra Premium CU2370

$155.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2370
    UPC: 671607742459
    Condition: New
    Weight: 52.64 LBS
    Item Package Quantity: 1
    $155.99
    Adding to cart… The item has been added

    Have questions?

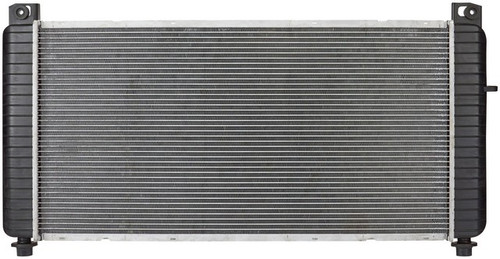

    Spectra Premium Radiator P/N:CU2370
    Spectra Premium Radiator P/N:CU2370
    $155.99
    $155.99

    Spectra Premium CU2370 radiator for the 1999-2013 Chevrolet Silverado 1500 V8 4.8L or 5.3L, the 2003-2009 Silverado 1500 V8 6.0L, the 2005-2012 Silverado 1500 V6 4.3L, the 2009-2010 Silverado 1500 V8 6.2L, the 2012-2013 Silverado 1500 V8 6.2L and other vehicles cools the engine coolant that flows through it. The structure and design of the Spectra Premium radiator are built to the durability expectations of the OE.

    • Aluminum core with plastic tanks
    • Cross-flow design with a single-row core
    • Built-in engine oil cooler (4 plates) and transmission oil cooler (5 plates), both plated type
    • Bottom post and top flange mounting
    • Inlet at the top left and outlet at the bottom right

    Quick facts

    • Part: Spectra Premium CU2370 radiator
    • Fits: the 1999-2013 Chevrolet Silverado 1500 V8 4.8L or 5.3L, the 2003-2009 Silverado 1500 V8 6.0L, the 2005-2012 Silverado 1500 V6 4.3L, the 2009-2010 Silverado 1500 V8 6.2L, the 2012-2013 Silverado 1500 V8 6.2L and other vehicles
    • Material: aluminum core, plastic tanks
    • Condition: New

    Coolant dripping under the front of the vehicle, a coolant level that keeps dropping or a temperature gauge that climbs can mean a leaking or clogged radiator, though hoses and other cooling parts leak too. With the engine off and cool, look over the tanks, seams and core fins for cracks, wet spots or bent fins first.

    Fits

    This radiator is listed for a wide range of Chevrolet, GMC and Cadillac models. It works as a GMC Sierra 1500 radiator for the 1999-2013 V8 5.3L, and it also fits the 1999-2004 Chevrolet Silverado 2500 V8 6.0L. If your vehicle is not named here, open the "Vehicles it fits" section and look up your exact model and engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 34 in
    • Core width: 17.25 in
    • Core thickness: 1 in
    • Core rows: 1
    • Inlet diameter: 1.3125 in
    • Outlet diameter: 1.5625 in
    • Inlet location: top left
    • Outlet location: bottom right
    • Mounting type: bottom post / top flange

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Flow type: cross flow
    • Engine oil cooler: internal, plated, 4 plates, 3/4 - 16 UNF female fittings 11.5 in apart
    • Transmission oil cooler: internal, plated, 5 plates, 5/8-18 UNF female fittings 11.5 in apart
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with the engine oil cooler and transmission oil cooler built in. A frame is not included. This listing is one radiator, and each vehicle takes one.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the right radiator for a 2000 Chevy Silverado 1500 V8 4.8L or 5.3L within the 1999-2013 range?

    Yes. Spectra Premium CU2370 is listed for the 1999-2013 Chevrolet Silverado 1500 V8 4.8L or 5.3L, which covers the 2000 model year. Open the "Vehicles it fits" section to match your engine.

    Does the Spectra Premium CU2370 radiator come with the oil coolers and a frame?

    Yes to the coolers: Spectra Premium CU2370 has the engine oil cooler and transmission oil cooler built in. No frame is included, and this listing is one radiator.

    How big is the core on this radiator, and what is it made of?

    The core is 34 in high, 17.25 in wide and 1 in thick, with a single row. This radiator's core is aluminum and its tanks are plastic.

    How can I tell if this cross-flow radiator is leaking?

    Dried coolant residue at the tank seams, bent core fins or a coolant smell from the front of the vehicle can mean a leak or restricted airflow. A shop can pressure-test the cooling system to find where it leaks.

    What fittings do the oil coolers on this radiator use?

    On Spectra Premium CU2370, the transmission oil cooler has 5/8-18 UNF female fittings 11.5 in apart. The engine oil cooler has 3/4 - 16 UNF female fittings, also 11.5 in apart.
