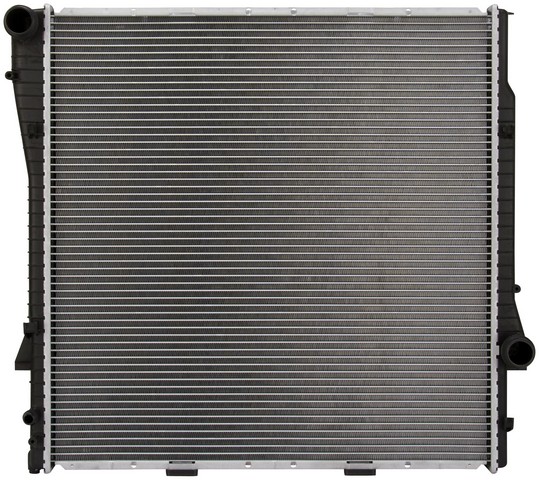

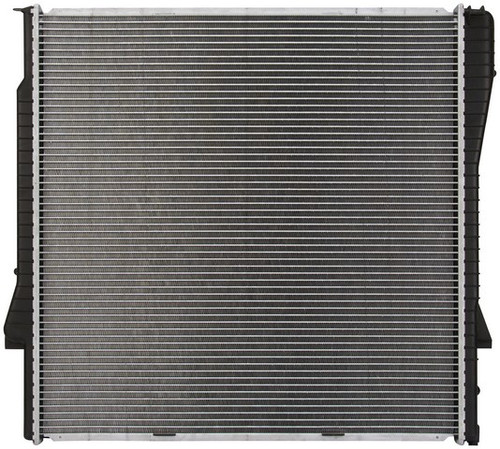

Spectra Premium CU2594 radiator for the 2001-2006 BMW X5 6-cylinder 3.0L cools engine coolant as it flows through the core. Its structure and design are built to the durability and expectations of the original equipment.
- Single-row aluminum core, 23.5625 in wide by 23.25 in high
- Plastic tanks on the cross-flow core
- Top-left inlet and bottom-right outlet, each 1.5 in in diameter
- Saddle mounting type
Quick facts
- Part: Spectra Premium CU2594 radiator
- Fits: 2001-2006 BMW X5 6-cylinder 3.0L
- Material: aluminum core, plastic tanks
- Condition: New
A worn or leaking radiator can show up as coolant stains at the tanks or core, an engine that runs hot, or a coolant level that keeps needing top-ups. Before you replace the radiator, rule out a loose hose clamp, a weak radiator cap and a stuck thermostat, since each can cause similar overheating or coolant loss.
Fits
This BMW X5 radiator is a direct-fit replacement for 2001-2006 models with the 6-cylinder 3.0L engine, and each vehicle takes one.
Specifications
Fit and size
- Core size: 23.5625 in wide, 23.25 in high, 1 in thick
- Core rows: 1
- Inlet: top left, 1.5 in diameter
- Outlet: bottom right, 1.5 in diameter
- Inlet and outlet header: 24.75 in long, 2.3125 in wide
- Mounting type: saddle
- Quantity per vehicle: 1
Build and materials
- Flow type: cross flow
- Core material: aluminum
- Tank material: plastic
- Internal engine and transmission oil coolers: none
- Condition: New
- Country of origin: China
In the box
One radiator. A frame, engine oil cooler and transmission oil cooler are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
40941, 40951, 8012594, 2594, 376718761, 376718764, 376718774, 1439103, 17101439103, 17107544668, 7544668, 7554668, 3178, 0ABW5402, 2594C, RAD2594, A2594, A2594C, OR2594, 2697, 412594, 7815A, 432522, 8761, RA2594C, 734896
Frequently Asked Questions
Does Spectra Premium CU2594 fit a 2001-2006 BMW X5 with the 6-cylinder 3.0L?
Yes. Spectra Premium CU2594 is a direct-fit radiator for the 2001-2006 BMW X5 6-cylinder 3.0L, and that vehicle takes one.
Does this radiator come with a frame or oil coolers?
No. This radiator is supplied on its own; the frame, engine oil cooler and transmission oil cooler are not included.
What size are the inlet and outlet on the CU2594 radiator?
On Spectra Premium CU2594, the top-left inlet and bottom-right outlet are both 1.5 in in diameter, on a 23.5625 in by 23.25 in core.
Is the Spectra Premium CU2594 all aluminum?
No. The core is aluminum and the tanks are plastic.
What visible signs can show a radiator with plastic tanks is leaking?
With the engine off and cool, look for coolant stains, wet spots or cracks on the tanks and core. A shop can pressure-test the cooling system to confirm a leak.
