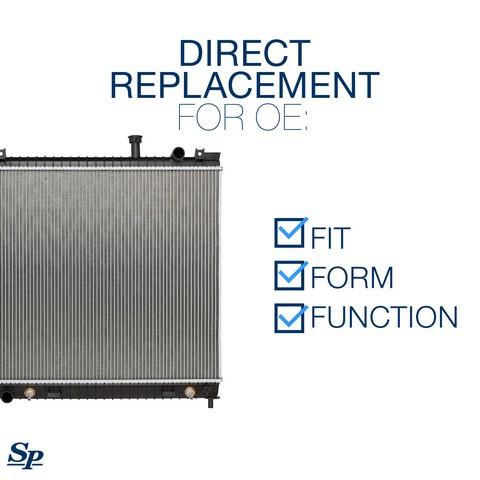

Spectra Premium CU2691 radiator for the 2004-2015 Nissan Titan V8 5.6L and other vehicles moves heat out of the engine coolant. The structure and design of this Spectra Premium radiator are built to carry the same durability expectations as the OE.
- Aluminum core, one row, 1.25 inches thick
- Plastic tanks with a down flow layout, inlet at the top right and outlet at the bottom right
- Internal concentric transmission oil cooler with 8 mm hose barb fittings
- Inlet and outlet diameter of 1.375 inches
- Bottom post / top saddle mounting
Quick facts
- Part: Spectra Premium CU2691 radiator
- Fits: 2004-2015 Nissan Titan V8 5.6L and other vehicles
- Material: Aluminum core, plastic tanks
- Condition: New
Coolant leaks, wet spots on the radiator, overheating or a low coolant level can mean a radiator is failing; look only with the engine off and cool. These signs alone do not prove the radiator is the problem, since a weak water pump can also overheat an engine.
Fits
The 2004-2015 Nissan Titan V8 5.6L, the 2005-2015 Nissan Armada V8 5.6L and the 2004-2010 Infiniti QX56 V8 5.6L all take this radiator, and so do other vehicles. If your car is not one of these, look it up in the "Vehicles it fits" section.

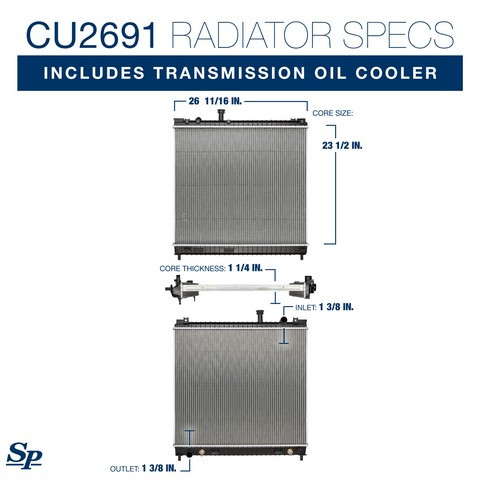

Specifications
Fit and size
- Quantity per vehicle: 1
- Core width: 26.6875 inches
- Core height: 23.5 inches
- Core thickness: 1.25 inches
- Core rows: 1
- Inlet and outlet diameter: 1.375 inches
- Inlet and outlet header: 27.375 inches long, 3.1875 inches wide
- Transmission oil cooler fitting spacing: 18.125 inches
Build and materials
- Core material: Aluminum
- Tank material: Plastic
- Flow type: Down flow
- Transmission oil cooler: Internal, concentric, 8 mm hose barb fittings
- Mounting type: Bottom post / top saddle
- Condition: New
- Country of origin: Republic of Korea
In the box
One radiator with its built-in transmission oil cooler; the frame is not included. This listing is one radiator, and each vehicle takes one.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this the 2004-2015 Nissan Titan radiator for trucks with the V8 5.6L?
Yes, Spectra Premium CU2691 fits the 2004-2015 Nissan Titan V8 5.6L. For a different car, look it up in the "Vehicles it fits" section.
Is this a Nissan Armada radiator for the 2005-2015 model years with the V8 5.6L?
Yes. This radiator fits the 2005-2015 Nissan Armada V8 5.6L, and the vehicle takes one.
Is the core on the CU2691 aluminum or plastic?
Spectra Premium CU2691 has an aluminum core with plastic tanks. The core is one row and 1.25 inches thick.
Does this radiator have a transmission oil cooler built in?
Yes, this radiator has an internal concentric transmission oil cooler with 8 mm hose barb fittings, 18.125 inches apart; it has no engine oil cooler.
Does this radiator come with a mounting frame?
No. The frame is not included; Spectra Premium CU2691 is one radiator with a built-in transmission oil cooler, mounted by a bottom post and top saddle.
