Radiator for 2004-2009 Mazda 3 - Spectra Premium CU2696

$127.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2696
    UPC: 671607750317
    Condition: New
    Weight: 30.60 LBS
    Item Package Quantity: 1
    $127.99
    Adding to cart… The item has been added

    Have questions?

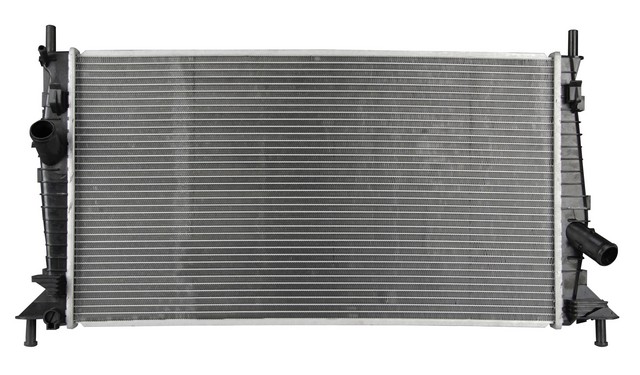

    Spectra Premium Radiator P/N:CU2696
    Spectra Premium Radiator P/N:CU2696
    $127.99
    $127.99

    Spectra Premium CU2696 radiator for the 2004-2009 Mazda 3 4-cylinder 2.0L or 2.3L carries hot engine coolant through its core so air passing over the core can take the heat away.

    • Aluminum core with plastic tanks
    • Cross-flow layout with the inlet at the top left and the outlet at the bottom right
    • Post-type mounting
    • Inlet and outlet diameters of 1.3125 in each

    Quick facts

    • Part: Spectra Premium CU2696 radiator
    • Fits: 2004-2009 Mazda 3 4-cylinder 2.0L or 2.3L
    • Material: Aluminum core, plastic tanks

    Coolant stains under the front of the car, a temperature gauge that climbs, or a cracked plastic tank can mean the radiator is leaking. A thermostat, water pump, cooling fan or hose can be behind overheating as well, so find the cause before you buy a replacement radiator.

    Fits

    It is a direct-fit replacement, a 2004-2009 Mazda 3 radiator for either the 4-cylinder 2.0L or the 2.3L engine. Its structure and design are built to meet the same durability expectations as the OE radiator.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 26.375 in high, 14.5 in wide, 0.625 in thick
    • Inlet diameter: 1.3125 in; outlet diameter: 1.3125 in
    • Inlet and outlet headers: 15.5 in long, 1.5625 in wide

    Build and materials

    • Core material: Aluminum
    • Tank material: Plastic
    • Core rows: 1
    • Country of origin: China

    In the box

    One radiator; the 2004-2009 Mazda 3 4-cylinder 2.0L or 2.3L takes one. A frame, an engine oil cooler and a transmission oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the Spectra Premium CU2696 radiator right for the 2004-2009 Mazda 3 4-cylinder 2.0L or 2.3L?

    Yes. Spectra Premium CU2696 is a direct-fit radiator for the 2004-2009 Mazda 3 with the 4-cylinder 2.0L or 2.3L engine.

    Does this Spectra Premium radiator come with a frame or oil coolers?

    No. Spectra Premium CU2696 is one radiator; a frame, an engine oil cooler and a transmission oil cooler are not included.

    What are the core and tanks of this radiator made of?

    The core is aluminum and the tanks are plastic. It is a single-row, cross-flow radiator.

    How big is the core on this radiator?

    The core measures 26.375 in high, 14.5 in wide and 0.625 in thick. The inlet and outlet are each 1.3125 in in diameter.

    Which signs can show the plastic tanks on a radiator are failing?

    Wet spots along the tank seams, dried coolant residue on the core, or an engine that runs hotter than usual can be signs. A shop can pressure-test the system to find the leak.
