Radiator for 2004-2012 Chevrolet Colorado & More - Spectra Premium CU2707

$139.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2707
    UPC: 671607749533
    Condition: New
    Weight: 33.84 LBS
    Item Package Quantity: 1
    $139.99
    Adding to cart… The item has been added

    Have questions?

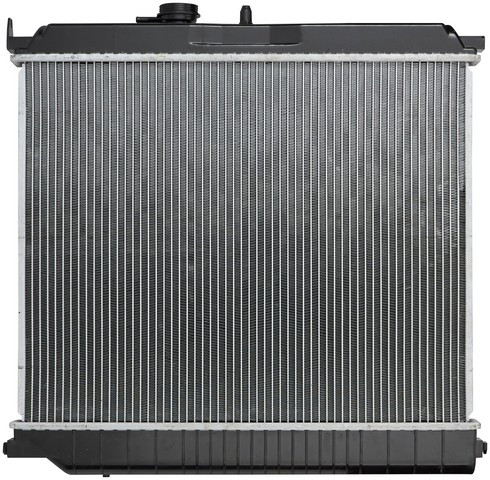

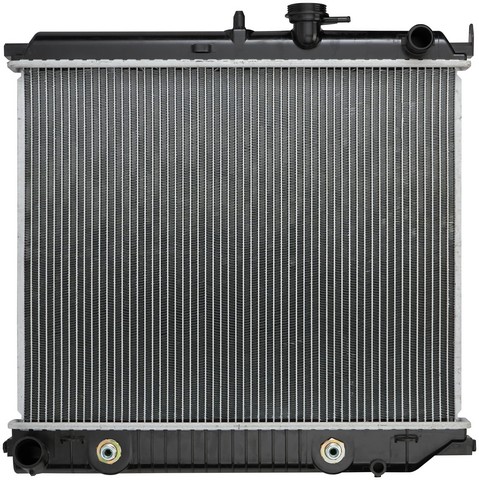

    Spectra Premium Radiator P/N:CU2707
    Spectra Premium Radiator P/N:CU2707
    $139.99
    $139.99

    Spectra Premium CU2707 radiator for the 2004-2006 Chevrolet Colorado 4-cylinder 2.8L or 5-cylinder 3.5L, the 2007-2012 Colorado 4-cylinder 2.9L or 5-cylinder 3.7L and other vehicles moves engine heat out of the coolant and into the air passing through the core. The structure and design of this Spectra Premium radiator are built to take on the same durability and expectations as the OE.

    • Aluminum core, one row, 22.375 inches wide, 18.125 inches high and 1 inch thick
    • Plastic tank material, with the inlet at the top right and the outlet at the bottom left
    • Down flow design
    • Internal transmission oil cooler with quick-connect fittings 11.5 inches apart
    • Bottom post and top flange mounting

    Quick facts

    • Part: Spectra Premium CU2707 radiator
    • Fits: the 2004-2006 Chevrolet Colorado 4-cylinder 2.8L or 5-cylinder 3.5L, the 2007-2012 Colorado 4-cylinder 2.9L or 5-cylinder 3.7L and other vehicles
    • Material: aluminum core, plastic tanks
    • Condition: New

    Coolant leaking from the core or tanks, overheating or a coolant level that keeps dropping can mean the radiator is worn, though a thermostat or a water pump can be behind the same signs.

    Fits

    The vehicles it fits include the 2004-2006 GMC Canyon 4-cylinder 2.8L or 5-cylinder 3.5L, the 2007-2012 Canyon 4-cylinder 2.9L or 5-cylinder 3.7L and the 2007-2008 Isuzu I-290 4-cylinder 2.9L. Whichever of these you drive, the cooling system needs one radiator. If your vehicle is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core: 22.375 in wide, 18.125 in high, 1 in thick, 1 row
    • Inlet diameter: 1.3125 in
    • Outlet diameter: 1.5625 in
    • Inlet and outlet header: 23.9375 in long, 2.3125 in wide
    • Inlet location: top right; outlet location: bottom left
    • Transmission oil cooler fitting distance: 11.5 in
    • Mounting type: bottom post / top flange

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Flow type: down flow
    • Transmission oil cooler: internal, plated, 3 plates, quick-connect fittings
    • Condition: New
    • Country of origin: Cambodia

    In the box

    One radiator with its internal transmission oil cooler. A frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this a 2005 Chevy Colorado radiator for the 2004-2006 Chevrolet Colorado 4-cylinder 2.8L or 5-cylinder 3.5L?

    Yes, Spectra Premium CU2707 fits the 2004-2006 Chevrolet Colorado 4-cylinder 2.8L or 5-cylinder 3.5L and the 2007-2012 Colorado 4-cylinder 2.9L or 5-cylinder 3.7L. Look up other models in the "Vehicles it fits" section.

    Is this the Canyon radiator for the 2007-2012 GMC Canyon 4-cylinder 2.9L or 5-cylinder 3.7L?

    Yes, Spectra Premium CU2707 fits the 2007-2012 GMC Canyon 4-cylinder 2.9L or 5-cylinder 3.7L, and the 2004-2006 Canyon 4-cylinder 2.8L or 5-cylinder 3.5L as well.

    Does CU2707 include a transmission oil cooler?

    Yes, this radiator has an internal transmission oil cooler with quick-connect fittings 11.5 inches apart. It has no internal engine oil cooler, and a frame is not included.

    Where on an aluminum-core, plastic-tank radiator should I look for a leak?

    With the engine off and cool, look for coolant residue or wet spots around the plastic tanks, the inlet and outlet and the aluminum core. A shop can pressure-test the system if the source is hard to find.

    What are the hose sizes and mounting type on this radiator?

    The inlet is 1.3125 inches in diameter at the top right, and the outlet is 1.5625 inches at the bottom left. It mounts with a bottom post and a top flange.
