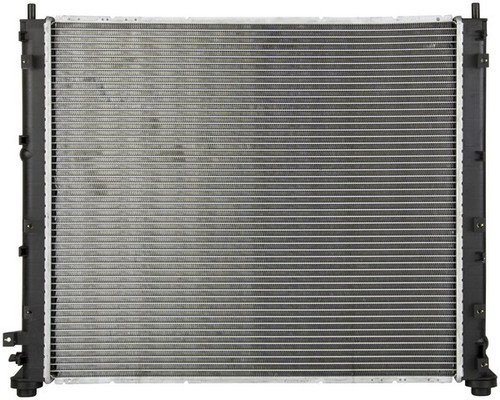

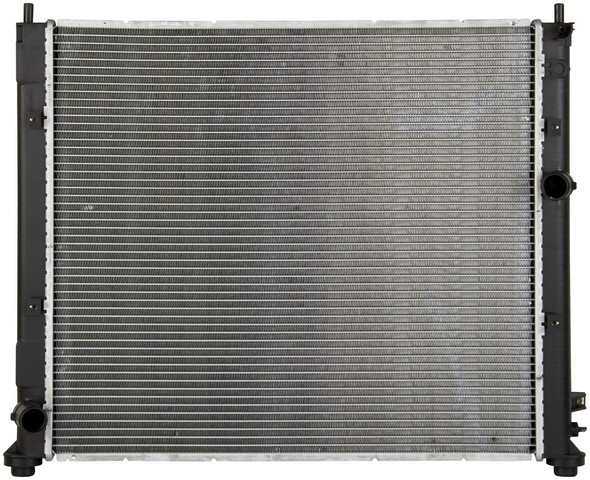

Front Radiator for 2005-2009 Cadillac STS & More - Spectra Premium CU2733

Spectra Premium CU2733 front radiator for the 2005-2009 Cadillac STS V6 3.6L or V8 4.6L, the 2006-2009 STS V8 4.4L and other vehicles moves engine coolant through its core to shed heat. Its structure and design are built to the same durability expectations as the OE radiator.

• Single-row aluminum core in a cross-flow layout
• Plastic tank material
• Post mounting type
• Inlet at the bottom left and outlet at the bottom right, each 1.3125 inch in diameter
• Core measures 23.625 inch high by 20.375 inch wide and is 1 inch thick

Quick facts

• Part: Spectra Premium CU2733 radiator
• Fits: 2005-2009 Cadillac STS V6 3.6L or V8 4.6L, the 2006-2009 STS V8 4.4L and other vehicles
• Position: Front
• Material: Aluminum core, plastic tanks
• Condition: New

A radiator that leaks at the tanks or core, a coolant level that keeps dropping or an engine that runs hotter than normal can all be signs it is failing. Before you replace the radiator, rule out a loose hose, a sticking thermostat or a weak water pump, since each can overheat an engine on its own. Check the coolant level only with the engine cool.

Fits

This radiator is a direct-fit replacement for the 2005-2009 Cadillac STS V6 3.6L or V8 4.6L and the 2006-2009 STS V8 4.4L. It is also a direct-fit radiator for the 2004-2007 Cadillac SRX V6 3.6L or V8 4.6L.

Specifications

In the box

One radiator; the vehicle takes one. A frame, an engine oil cooler and a transmission oil cooler are not included.
