Radiator for 2004-2006 Jeep Wrangler & More - Spectra Premium CU2841

$194.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU2841
    UPC: 671607779516
    Condition: New
    Weight: 29.78 LBS
    Item Package Quantity: 1
    $194.99
    Adding to cart… The item has been added

    Have questions?

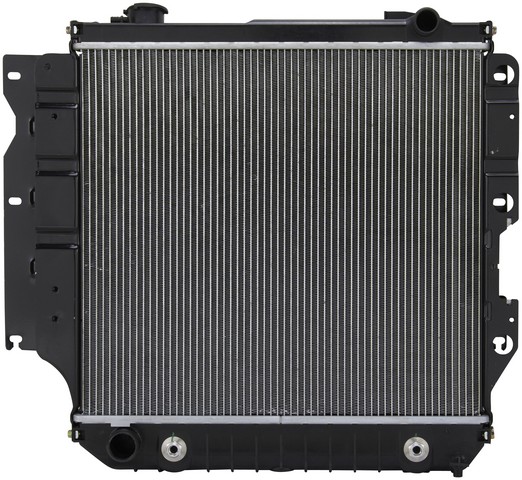

    Spectra Premium Radiator P/N:CU2841
    Spectra Premium Radiator P/N:CU2841
    $194.99
    $194.99

    Spectra Premium CU2841 radiator for the 2004-2006 Jeep Wrangler 4-cylinder 2.4L or 6-cylinder 4.0L and other vehicles carries engine coolant through an aluminum core to shed heat. The structure and design of this Spectra Premium radiator are built to the same durability and expectations as the OE.

    • Aluminum core with one row and plastic tanks
    • Down-flow layout with the inlet at the top right and the outlet at the bottom right
    • Plated internal transmission oil cooler with three plates and quick-connect fittings
    • Inlet and outlet headers 20.5 in long and 2.4375 in wide

    Quick facts

    • Part: Spectra Premium CU2841 radiator
    • Fits: 2004-2006 Jeep Wrangler 4-cylinder 2.4L or 6-cylinder 4.0L and other vehicles
    • Material: aluminum core, plastic tanks
    • Condition: New

    Coolant leaks at the tanks or core, an engine that runs hot or a coolant level that keeps dropping can mean the radiator is worn, though a thermostat or a water pump can be behind the same signs, so find the cause before you replace it.

    Fits

    It also fits the 2004-2006 Jeep TJ 6-cylinder 4.0L and the 2005-2006 TJ 4-cylinder 2.4L. The quantity is one radiator per vehicle.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 19.375 in wide, 18.125 in high, 1 in thick
    • Core rows: 1
    • Inlet diameter: 1.25 in
    • Outlet diameter: 1.5 in
    • Transmission oil cooler distance between fittings: 12 in
    • Mounting type: Flange

    Build and materials

    • Core material: Aluminum
    • Tank material: Plastic
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with its internal transmission oil cooler. A frame and an engine oil cooler are not included.

    Interchange: 2841 · 8012841 · AR2841 · 3426 · 3465 · C2841 · 55037653AC · B2841 · 2841C · 434091 · NR2841B · 2401015 · CH3010329 · 2755 · 411682 · 412841 · 8301 · RA2841C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    2841, 8012841, AR2841, 3426, 3465, C2841, 55037653AC, B2841, 2841C, 434091, NR2841B, 2401015, CH3010329, 2755, 411682, 412841, 8301, RA2841C

    Frequently Asked Questions

    Is this Jeep Wrangler radiator right for a 2004-2006 Jeep Wrangler 6-cylinder 4.0L?

    Yes. Spectra Premium CU2841 fits the 2004-2006 Jeep Wrangler 6-cylinder 4.0L, and it also fits the 2004-2006 Jeep Wrangler 4-cylinder 2.4L.

    Does this Jeep TJ radiator fit the 2005-2006 Jeep TJ 4-cylinder 2.4L?

    Yes. Spectra Premium CU2841 fits the 2005-2006 Jeep TJ 4-cylinder 2.4L, and the 2004-2006 Jeep TJ with the 6-cylinder 4.0L is covered too.

    Does the CU2841 radiator come with a transmission oil cooler?

    Yes. The radiator has an internal plated transmission oil cooler with quick-connect fittings. A frame and an engine oil cooler are not included.

    What are the inlet and outlet sizes on this radiator?

    The inlet is 1.25 in in diameter and the outlet is 1.5 in. The inlet sits at the top right and the outlet at the bottom right, in a down-flow layout.

    Is 55037653AC a number that this radiator replaces?

    Yes. 55037653AC is listed as a cross-reference for this radiator, along with 2841 and 8012841.
