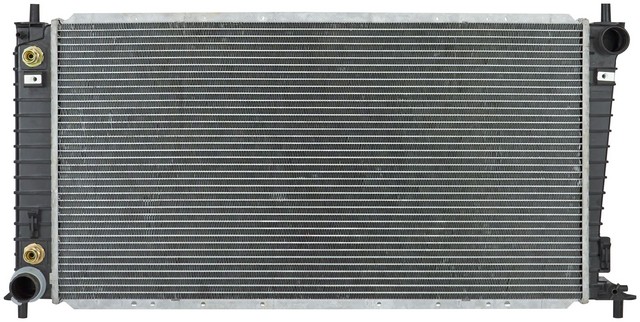

Spectra Premium CU2136 radiator for the 1997-2003 Ford F-150 V8 5.4L, the 1999-2003 F-150 V8 4.6L and other vehicles carries engine coolant through a two-row aluminum core to shed engine heat. Its structure and design are built to match the durability and expectations of the OE.
- Two-row aluminum core with a cross-flow design
- Plastic tanks
- Internal transmission oil cooler built into the radiator
- Post-style mounting
Quick facts
- Part: Spectra Premium CU2136 radiator
- Fits: 1997-2003 Ford F-150 V8 5.4L, the 1999-2003 F-150 V8 4.6L and other vehicles
- Material: Aluminum core, plastic tanks
- Condition: New
Coolant leaks, overheating or visible damage to the core or tanks can mean a radiator has failed. A leaking hose, a stuck thermostat, a weak water pump or a bad radiator cap can cause overheating or coolant loss too, so find the cause before you buy a radiator.
Fits
The 1997-2003 Ford F-150 V8 5.4L and the 1999-2003 F-150 V8 4.6L take this radiator, and so do many other vehicles. They include the 1997-1999 Ford F-250 V8 5.4L, the 1999-2003 F-250 V8 4.6L, the 2001 F-250 V8 5.4L and, as a Ford Expedition radiator, the 1997-2002 V8 5.4L and the 1999-2002 V8 4.6L. If your vehicle is not named here, look it up by year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core height: 31.8125 in
- Core width: 16.8125 in
- Core thickness: 2.25 in (2 rows)
- Inlet diameter: 1.75 in; outlet diameter: 1.75 in
- Inlet location: bottom left; outlet location: bottom right
- Inlet and outlet header length: 17.1875 in; header width: 3.125 in
- Mounting type: Post
Build and materials
- Flow type: Cross flow
- Core material: Aluminum
- Tank material: Plastic
- Transmission oil cooler: plated, 5 plates, 3/8 NPT female fittings, 12 in between fittings
- Engine oil cooler: not included
- Frame: not included
- Condition: New
- Country of origin: Canada
In the box
One radiator with its internal transmission oil cooler. A frame and an engine oil cooler are not included. This listing holds one radiator, and each vehicle takes one.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this one of the Ford F-150 radiators that fits a 1997-2003 Ford F-150 V8 5.4L?
Yes. Spectra Premium CU2136 fits the 1997-2003 Ford F-150 V8 5.4L, and it also fits the 1999-2003 F-150 V8 4.6L.
Is this a Ford F-250 radiator for the 1999-2003 F-250 V8 4.6L?
Yes. Spectra Premium CU2136 fits the 1999-2003 Ford F-250 V8 4.6L, and each vehicle takes one radiator.
Does this radiator come with a transmission oil cooler?
Yes. This radiator has an internal plated transmission oil cooler with 3/8 NPT female fittings. A frame and an engine oil cooler are not included.
What size are the inlet and outlet on this radiator?
Both the inlet and the outlet are 1.75 inches in diameter. The inlet sits at the bottom left and the outlet at the bottom right.
How thick is the core on this cross-flow radiator?
The two-row aluminum core on this radiator is 2.25 inches thick, 31.8125 inches high and 16.8125 inches wide.
