Radiator for 2005-2006 Toyota Sienna - Spectra Premium CU2925

$167.99

WARNING:California Proposition 65▾

Spectra Premium Radiator CU2925 - view 2

Part number: CU2925

UPC: 671607761603

Condition: New

Weight: 33.09 LBS

Item Package Quantity: 1

$167.99

Current Stock: 24

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

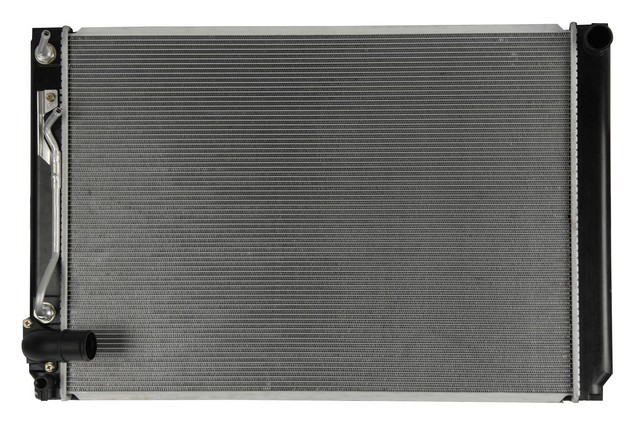

Spectra Premium Radiator P/N:CU2925

$167.99

Description

Spectra Premium CU2925 radiator for the 2005-2006 Toyota Sienna V6 3.3L carries engine coolant through its core so the engine sheds heat. The structure and design of this Spectra Premium radiator are built to meet the same durability expectations as the OE.

Aluminum cross-flow core with one row
Plastic tanks
Internal transmission oil cooler with 3 plates and 10 mm hose barb fittings
Inlet at the top right and outlet at the bottom left
Saddle mounting

Quick facts

Part: Spectra Premium CU2925 radiator
Fits: 2005-2006 Toyota Sienna V6 3.3L
Material: Aluminum core, plastic tanks
Condition: New

Coolant stains on the core or tanks, a cracked plastic tank, or a temperature gauge that runs high can mean the radiator is failing. With the engine off and cool, a look at the core and tanks is a sensible first check. A high gauge alone does not prove the radiator is at fault, since a worn thermostat can cause it too.

Fits

This radiator is a direct-fit replacement for the 2005-2006 Toyota Sienna V6 3.3L, and that vehicle takes one.

Specifications

Fit and size

Quantity per vehicle: 1
Core size: 26.5625 in high, 18.75 in wide, 0.8125 in thick
Inlet diameter: 1.375 in
Outlet diameter: 1.5625 in
Inlet location: top right
Outlet location: bottom left
Mounting type: saddle
Transmission oil cooler distance between fittings: 13.75 in

Build and materials

Core material: aluminum, 1 row, cross flow
Tank material: plastic
Transmission oil cooler: internal, plated, 3 plates, 10 mm hose barb fittings
Condition: new
Country of origin: China

In the box

One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Is this the right 2005-2006 Toyota Sienna radiator for the V6 3.3L?

Yes. Spectra Premium CU2925 fits the 2005-2006 Toyota Sienna V6 3.3L, and that vehicle takes one.

Does the Spectra Premium CU2925 radiator include a transmission oil cooler?

Yes. Spectra Premium CU2925 has an internal transmission oil cooler with 10 mm hose barb fittings. An engine oil cooler and a frame are not included.

What are the core and tanks of this radiator made of?

The core is aluminum and the tanks are plastic. The core is a cross-flow design with one row.

How can I tell if this radiator is leaking?

With the engine off and cool, look for coolant stains or wet spots on the core and tanks, or cracks in the plastic tanks. A shop can pressure test the cooling system.

Which side are the inlet and outlet on this radiator?

The inlet is at the top right and the outlet at the bottom left. Inlet diameter is 1.375 in and outlet diameter is 1.5625 in.
