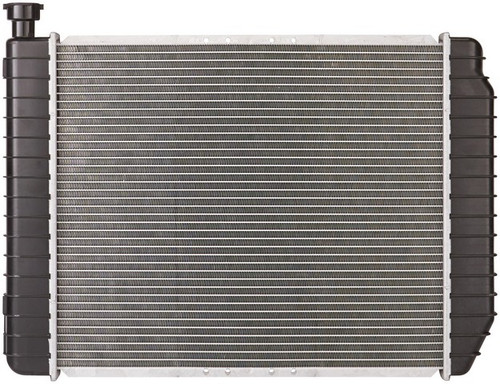

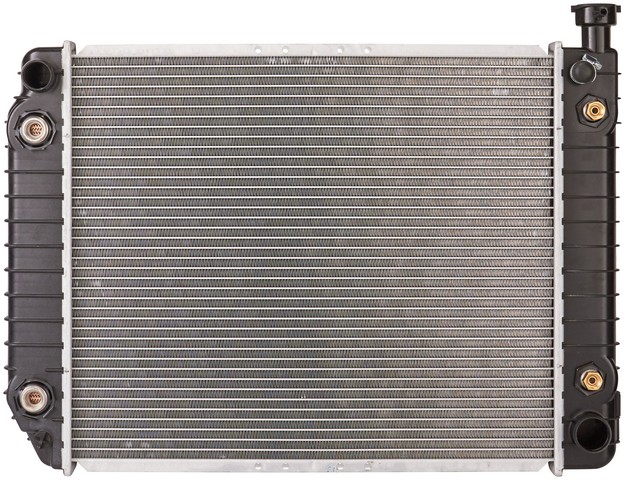

Spectra Premium CU677 radiator for the 1988-1990 Chevrolet C1500 V8 5.0L, the 1988-1991 C1500 V8 5.7L, the 1988-1993 C1500 V6 4.3L and other vehicles passes hot engine coolant through a cross-flow aluminum core to shed heat. Its structure and design are built to the same durability expectations as the OE.
- Cross-flow aluminum core, one row, 20.75 in high, 17.25 in wide and 1.25 in thick
- Plastic tanks, with the inlet at the top left and the outlet at the bottom right
- Internal engine oil cooler with 3 plates, plated type, M20 - 1.5 female fitting

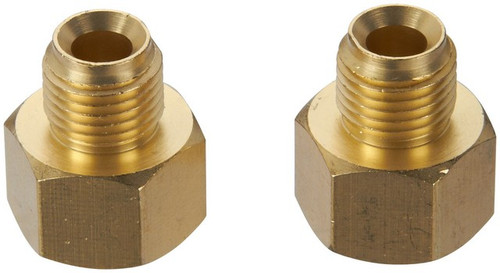

- Internal transmission oil cooler with 4 plates, plated type, 1/2-20 UNF female fittings
Quick facts
- Part: Spectra Premium CU677 radiator
- Fits: the 1988-1990 Chevrolet C1500 V8 5.0L, the 1988-1991 C1500 V8 5.7L, the 1988-1993 C1500 V6 4.3L and other vehicles
- Material: Aluminum core, plastic tanks
- Condition: New
Coolant stains around the seams, a rising temperature gauge or a low coolant level can mean the radiator is leaking or clogged. With the engine off and cool, look over the core and plastic tanks for wet spots, cracks or bent fins. Overheating also has other causes, so find the cause before replacing the radiator.
Fits
The 1988-1990 Chevy K1500 V8 5.0L, the 1988-1991 K1500 V8 5.7L, the 1988-1993 K1500 V6 4.3L and the 1990-1991 Chevrolet Suburban V8 5.7L also take this radiator. Driving something else? Look up your own year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core height: 20.75 in
- Core width: 17.25 in
- Core thickness: 1.25 in
- Core rows: 1
- Inlet diameter: 1.3125 in
- Outlet diameter: 1.5625 in
- Inlet and outlet header: 18.6875 in long, 2.375 in wide
- Inlet location: top left
- Outlet location: bottom right
- Oil cooler fittings distance apart: 11.5 in
- Mounting type: saddle
Build and materials
- Flow type: cross flow
- Core material: aluminum
- Tank material: plastic
- Engine oil cooler: internal, plated, 3 plates, M20 - 1.5 female fitting
- Transmission oil cooler: internal, plated, 4 plates, 1/2-20 UNF female fittings
- Condition: new
- Country of origin: Canada
In the box
One radiator with its built-in engine and transmission oil coolers; a frame is not included. This listing is one radiator, and each vehicle takes one.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this the right Chevy Suburban radiator for a 1990-1991 Suburban V8 5.7L?
Yes. Spectra Premium CU677 is listed for the 1990-1991 Chevrolet Suburban V8 5.7L. The listing is one radiator, and the vehicle takes one.
Is this C1500 radiator right for a 1988-1993 Chevrolet C1500 V6 4.3L?
Yes. This radiator is listed for the 1988-1993 Chevrolet C1500 V6 4.3L, and it is one cross-flow radiator with an aluminum core.
Does this radiator include the engine and transmission oil coolers?
Yes. Spectra Premium CU677 has an internal engine oil cooler (M20 - 1.5 female fitting) and an internal transmission oil cooler (1/2-20 UNF female fittings). A frame is not included.
What are the core size and tank material of this radiator?
The aluminum core is 20.75 in high, 17.25 in wide and 1.25 in thick, with one row. The tanks are plastic.
Which side are the inlet and outlet on this radiator?
The inlet is at the top left and the outlet at the bottom right. The inlet diameter is 1.3125 in and the outlet diameter is 1.5625 in.
