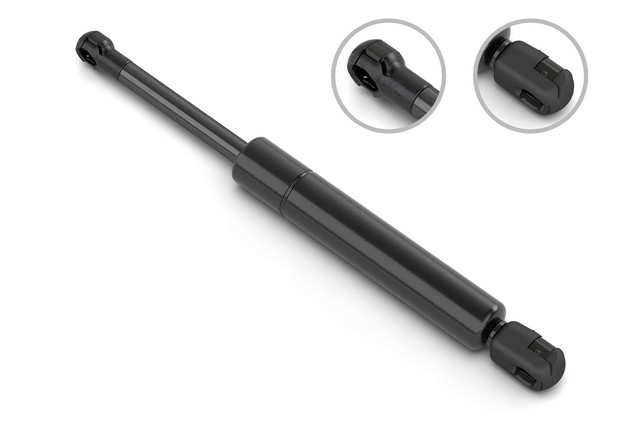

Hold your hood up smoothly and steadily with the Stabilus Hood Lift Support 5B-0488VQ, a 9.21-inch gas-charged strut with dynamic speed control. It installs as a direct-fit replacement on the listed Mercedes-Benz applications — 2007 GL450, 1998-2003 ML320, 2003-2005 ML350, 1998-2001 ML430, 2002-2007 ML500 and 2000-2003 ML55 AMG (see the "Vehicles it fits" section for engine specifics). This Lift-O-Mat by Stabilus uses a longitudinal groove — a velocity manifold pressed into the tube wall — that lets gas flow around the piston with extension speed and damping tuned for this application, and the groove narrows toward the end of the stroke for a gentle, controlled stop.
- Dynamic damping speed control: creates a fluid opening motion with no bouncing or jerking during cycling.
- Corrosion-resistant coatings: part coatings tested to automotive standards.
- Easy installation: requires no special tools.
- OE-based design: built to the OE design for proper fit, form and function; for best results replace in pairs.
Signs this support may need replacing include a hood that drifts down, drops quickly, or won't stay up on its own. Sold individually; replacing both supports at once is recommended for balanced, even lift.
Interchange: 80 568 05 · 163 880 00 29 · 819-6146
F95464DL · 86319 · 8056805 · 1638800029 · A1638800029 · F95464 · 8196146 · 0488VQ · 2416MH · 2431MU · 46319 · 6319 · F6319 · 614399 · SG403062 · TSG403062
This part cross-references / interchanges with the following part numbers:
LS10428, F95464DL, 86319, 80 568 05, 8056805, 163 880 00 29, 1638800029, A1638800029, 6319, F6319, F95464, 819-6146, 8196146, 0488VQ, 2416MH, 2431MU, 46319, 614399, SG403062, TSG403062
Frequently Asked Questions
What is the Stabilus 5B-0488VQ?
It is a 9.21-inch gas-charged hood lift support with dynamic speed control that holds the hood open and lowers it with a smooth, controlled motion.
Which vehicles does it fit?
It is a direct-fit replacement for the 2007 GL450, 1998-2003 ML320, 2003-2005 ML350, 1998-2001 ML430, 2002-2007 ML500 and 2000-2003 ML55 AMG. Check the "Vehicles it fits" section for full details.
Should I replace both supports at the same time?
For best results Stabilus recommends replacing in pairs. This listing is for one support, so order two for a balanced, even lift.
What makes the Lift-O-Mat design different?
A longitudinal groove pressed into the tube wall lets gas flow around the piston, tuning extension speed and damping and narrowing toward the end of the stroke for a gentle stop.
How can I tell this support is worn?
Common signs include a hood that slowly drifts down, drops too fast, or will not stay up on its own. If a failed support is the cause, this replaces it.
