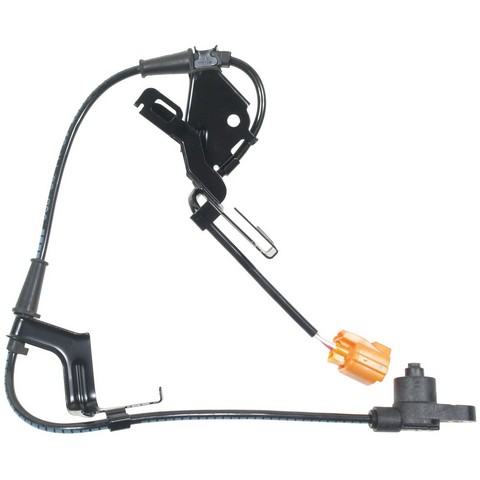

Standard Ignition ALS1027 front left ABS wheel speed sensor for the 2003-2005 Honda Civic reports how fast the wheel turns to the ABS. This Standard Ignition ABS wheel speed sensor is engineered specifically for Honda vehicles and mounts at the wheel.
- Synthetic material made to withstand harsh operating conditions
- Grommets and wire clips on the harness for mounting and routing
- Sealed connector for protection in harsh conditions
- Tested on vehicles for fit and correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS1027 ABS wheel speed sensor
- Fits: 2003-2005 Honda Civic
- Position: Front left
- Condition: New
A worn, damaged or dirty wheel speed sensor can light the ABS warning light. Before replacing it, look over the visible wiring and connector with the engine off for cracks, damage or rust, since the light can have other causes. If this sensor is the cause, this one replaces it.
Fits
It is a direct-fit replacement for the front left wheel of the 2003-2005 Honda Civic.
Specifications
Fit and size
- Position: front left
- Mounting location: wheel
- Quantity per vehicle: 1 for this side
- Harness length: 25 in (635 mm)
- Number of bolt holes: 2
Build and materials

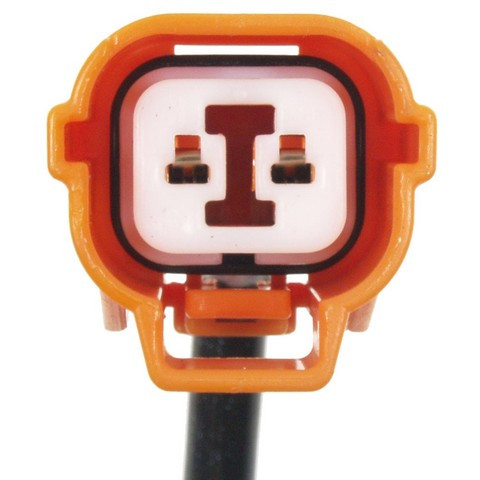

- Connector: 1 square, male
- Terminals: 2 blade, female
- Condition: new
- Country of origin: Thailand
In the box
One front left ABS wheel speed sensor with its harness, grommets and wire clips. This listing is one sensor, and the front left takes one; the front right is a separate part. Mounting hardware is not included, so plan on new bolts for the two bolt holes.
Interchange: ABS1137 · SU9021 · 531583 · 57455S5B003
This part cross-references / interchanges with the following part numbers:
ABS1137, SU9021, 531583, 57455S5B003, ALS1027
Frequently Asked Questions
Is the Standard Ignition ALS1027 sensor right for the 2003-2005 Honda Civic?
Yes. Standard Ignition ALS1027 is a front left ABS wheel speed sensor that fits the 2003-2005 Honda Civic. The front right wheel takes its own sensor.
Do the grommets and wire clips come with this front left ABS wheel speed sensor?
Yes. Grommets and wire clips are included on the harness for mounting and routing. Mounting hardware is not included.
How long is the harness on Standard Ignition ALS1027?
The harness is 25 inches (635 mm) long. It ends in one square male connector with two female blade terminals.
Can an ABS warning light be a sign of a faulty wheel speed sensor?
It can be one sign, but other causes such as wiring damage can light it too. A shop can read the stored codes to see which wheel's signal is missing.
Does Standard Ignition ALS1027 replace the 57455S5B003 number?
Yes. Standard Ignition ALS1027 replaces the 57455S5B003 number for the front left wheel speed sensor.
