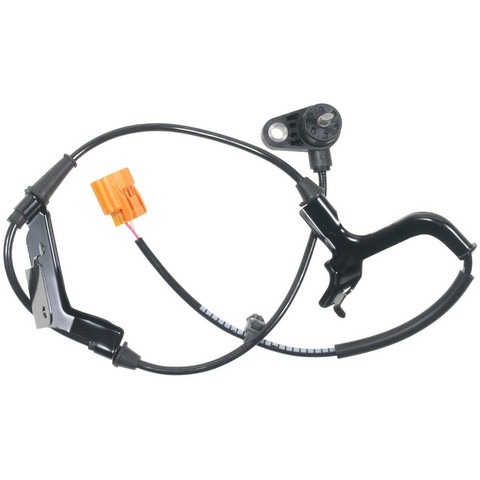

Standard Ignition ALS1035 rear right ABS wheel speed sensor for the 2003-2005 Honda Civic reads wheel rotation and passes it on to the ABS. This Standard Ignition ABS wheel speed sensor is engineered specifically for Honda vehicles.
- Durable synthetic material made to withstand harsh operating conditions
- Harness carries location grommets and wire clips for mounting and routing
- Tested on vehicles for correct integration with electronic safety systems
- Sealed connector for protection in harsh conditions
Quick facts
- Part: Standard Ignition ALS1035 ABS wheel speed sensor
- Fits: 2003-2005 Honda Civic
- Position: Rear right
- Condition: New
A lit ABS or traction control warning light can mean this sensor is worn or failing, though a damaged tone ring or a faulty wiring connection can also be behind it, so find the cause before replacing the sensor.
Fits
It is a direct-fit replacement for the 2003-2005 Honda Civic. This listing is one sensor for the rear right wheel, and the rear left side is a separate part ordered on its own. The 2003-2005 Honda Civic takes one sensor at the rear right wheel.
Specifications
Fit and size
- Position: Rear right
- Mounting location: Wheel
- Quantity per application: 1
- Harness length: 34 in (867 mm)
- Number of bolt holes: 1
Build and materials

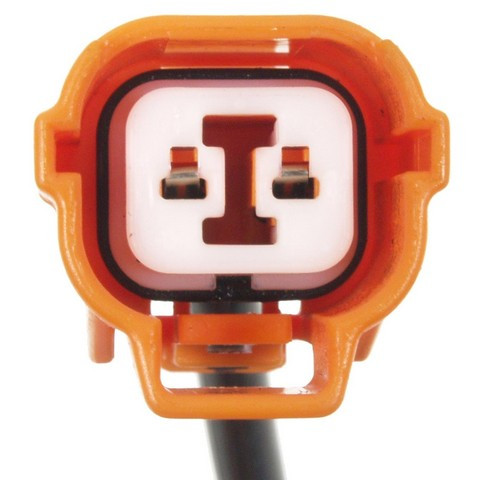

- Connector: 1 square, male
- Terminals: 2 blade, female
- Condition: New
- Country of origin: Japan
In the box
One rear right ABS wheel speed sensor with its harness. Mounting hardware is not included, so plan on new hardware, since the old pieces may not be reusable.
Interchange: ABS1145 · ABSD30883 · 531590 · 57470S5B003
This part cross-references / interchanges with the following part numbers:
ABS1145, ABSD30883, 531590, 57470S5B003, ALS1035
Frequently Asked Questions
Is the Standard Ignition ALS1035 right for a 2003-2005 Honda Civic?
Yes. Standard Ignition ALS1035 is the rear right ABS wheel speed sensor for the 2003-2005 Honda Civic. The rear left wheel uses a separate sensor.
Does this rear right wheel speed sensor come with mounting hardware?
No, mounting hardware is not included, so plan on new hardware. The harness does carry location grommets and wire clips for mounting and routing.
How long is the harness on the Standard Ignition ALS1035?
The harness on Standard Ignition ALS1035 is 34 inches (867 mm) long. It ends in one male square connector with two female blade terminals.
Can a failing rear right wheel speed sensor turn on the ABS light?
Yes. An ABS or traction control warning light can come on when a wheel speed sensor is failing, and a shop can test the sensor and its wiring.
Does ALS1035 replace the sensor numbered ABS1145?
Yes. ABS1145 is one of the numbers that Standard Ignition ALS1035 replaces, and this unit is the rear right sensor.
