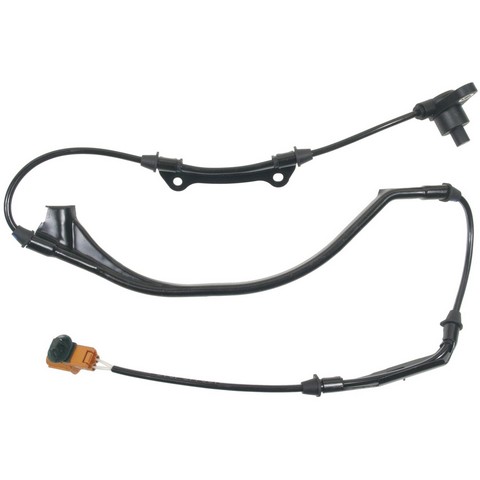

Standard Ignition ALS1095 rear left ABS wheel speed sensor for the 1999-2001 Honda Odyssey reads wheel rotation and sends that signal to the ABS control module. The module compares the signal with the other wheels to spot one that is slowing faster than the rest.
- Synthetic material made to withstand harsh operating conditions
- Location grommets and wire clips on the harness for mounting and routing
- Tested on vehicles for correct integration with electronic safety systems
- Sealed connector that protects against harsh conditions
Quick facts
- Part: Standard Ignition ALS1095 ABS wheel speed sensor
- Fits: 1999-2001 Honda Odyssey
- Position: Rear left
- Material: Synthetic
- Condition: New
An ABS warning light, or ABS that stops working as it should, can mean this sensor is worn or failing. A damaged tone ring or wiring harness at that wheel can be behind it too, so find the cause before you replace the sensor.
Fits
This ABS wheel speed sensor is a direct-fit replacement for the rear left wheel of the 1999-2001 Honda Odyssey.
Specifications
Fit and size
- Position: Rear left
- Mounting location: Wheel
- Quantity per vehicle: 1 for this side
- Harness length: 43 in (1090 mm)
- Mounting bolt holes: 3
Build and materials
- Material: Synthetic

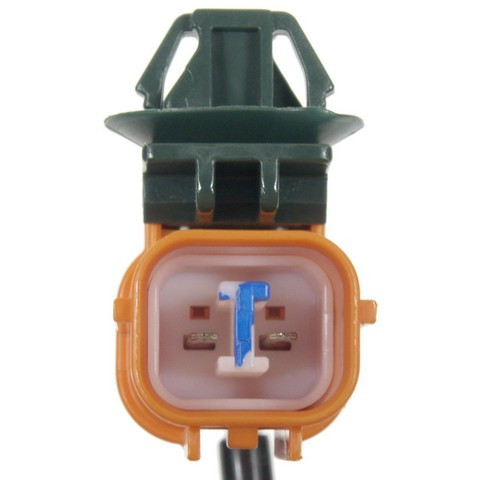

- Connector: 1 square female connector
- Terminals: 2 male blade
- Condition: New
- Country of origin: United States
In the box
One rear left ABS wheel speed sensor with its harness. Mounting hardware is not included, so plan on new bolts. This listing is one sensor; the rear left takes one, and the rear right sensor is a separate part ordered on its own.
Interchange: ABS1205 · SU9082 · 531630 · 57475S0XA01 · 57475S0XA02
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS1205, SU9082, 531630, 57475S0XA01, 57475S0XA02, ALS1095
Frequently Asked Questions
Does the Standard Ignition ALS1095 fit the 1999-2001 Honda Odyssey?
Yes. The Standard Ignition ALS1095 is a rear left ABS wheel speed sensor for the 1999-2001 Honda Odyssey.
Do I need to buy bolts for this Standard Ignition ABS wheel speed sensor?
Yes, plan on separate bolts. Mounting hardware is not included, and the old ones may not be reusable. The sensor has three bolt holes.
How long is the harness on the ALS1095 speed sensor?
The Standard Ignition ALS1095 harness is 43 inches (1090 mm) long. It ends in one square female connector with two male blade terminals.
What happens when a rear left ABS wheel speed sensor goes bad?
The ABS light may come on, or ABS braking may stop working as designed. A shop can test the sensor circuit to confirm the cause.
Does the Standard Ignition ALS1095 interchange with 57475S0XA01?
Yes. 57475S0XA01 is one of the numbers listed for the Standard Ignition ALS1095, along with ABS1205, SU9082, 531630 and 57475S0XA02.
