Standard Ignition ALS1200 rear right ABS wheel speed sensor for the 1993-1994 Jeep Grand Cherokee and other vehicles reports wheel rotation to the ABS module. The module uses that signal to spot a wheel that is slowing too fast.
A lit ABS warning light, or an ABS that stops working, can mean a wheel speed sensor has failed. If a failed sensor is the cause, this one replaces the rear right unit, but the light alone does not prove it, since damaged wiring can set it off too. This listing is one sensor for the rear right wheel; the rear left takes its own.
It fits the 1993-1994 Jeep Grand Cherokee and the 1993 Jeep Grand Wagoneer.
Fit and size
Build and materials

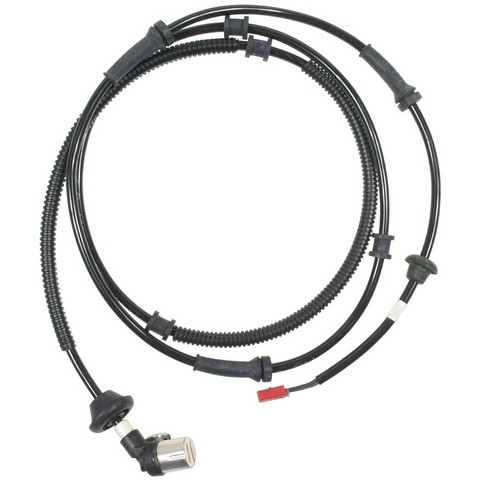

One rear right ABS wheel speed sensor with grommets and wire clips on the harness. Mounting hardware is not included, and the old fastener may not be reusable, so plan on a new one.
Does the Standard Ignition ALS1200 fit the 1993 Jeep Grand Wagoneer?
Yes. The Standard Ignition ALS1200 rear right ABS wheel speed sensor fits the 1993 Jeep Grand Wagoneer.
Is mounting hardware included with this Standard Ignition ABS wheel speed sensor?
No. Mounting hardware is not included with the ALS1200, but the harness comes with grommets and wire clips for mounting and routing.
How long is the harness on the ALS1200 sensor?
The harness is 76.5 in (1945 mm) long, and the sensor mounts with one bolt hole.
What can a failing rear right wheel speed sensor look like?
The ABS warning light can come on, or the ABS may stop working. A shop can read the stored codes to see which wheel is reporting a problem.
Is the connector on this rear right sensor sealed?
Yes. This sensor uses a sealed rectangular connector for protection in harsh conditions, with two female blade terminals.
