Rear Left ABS Wheel Speed Sensor for 2006-2007 Mazda 6 - Standard Ignition ALS1206

$244.99

Vehicles this part fits

    Part number: ALS1206
    UPC: 707390691770
    Condition: New
    Weight: 0.47 LBS
    Item Package Quantity: 1
    $244.99
    Adding to cart… The item has been added

    Have questions?

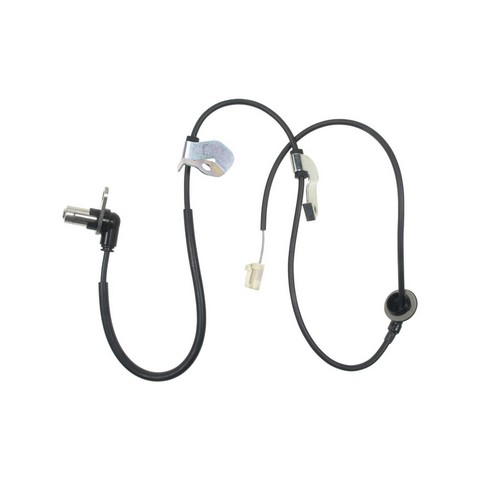

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1206
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1206
    $244.99
    $244.99

    Standard Ignition ALS1206 rear left ABS wheel speed sensor for the 2006-2007 Mazda 6 senses how fast the wheel turns and reports it to the ABS module.

    • Synthetic material made to withstand harsh operating conditions
    • Location grommets and wire clips on the harness for mounting and routing
    • Sealed connector for protection in harsh conditions
    • Tested on vehicles for correct integration with electronic safety systems

    Quick facts

    • Part: Standard Ignition ALS1206 ABS wheel speed sensor
    • Fits: 2006-2007 Mazda 6
    • Position: Rear left
    • Condition: New

    An ABS warning light or an ABS that stops working can mean this sensor is worn or failing, though a damaged wiring harness or a damaged tone ring can be behind those signs too.

    Fits

    This sensor fits the 2006-2007 Mazda 6 and was tested on vehicles for proper fit. The listing is one sensor for the rear left; the 2006-2007 Mazda 6 takes one at that position, and the rear right is a separate part.

    Specifications

    Fit and size

    • Position: rear left
    • Quantity per vehicle: 1
    • Harness length: 45 in (1140 mm)
    • Mounting bolt holes: 1
    • Connector: rectangular, male, 1 connector
    • Terminals: 2, blade, female

    Build and materials

    • Condition: new
    • Connector protection: sealed
    • Country of origin: Japan

    In the box

    One ABS wheel speed sensor with its harness. Mounting hardware is not included, and the old hardware may not be reusable, so plan on new.

    Interchange: ABS1316 · ABSD30867 · 531726 · G21D4372YC

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    ABS1316, ABSD30867, 531726, G21D4372YC, ALS1206

    Frequently Asked Questions

    Is the Standard Ignition ALS1206 sensor right for the 2006-2007 Mazda 6?

    Yes, Standard Ignition ALS1206 is the rear left ABS wheel speed sensor for the 2006-2007 Mazda 6; the rear right side is a separate part.

    Does the Standard Ignition ALS1206 come with mounting hardware?

    No. Standard Ignition ALS1206 comes without mounting hardware, so plan on new hardware; its harness does carry location grommets and wire clips.

    How long is the harness on this rear left ABS sensor?

    The harness is 45 inches (1140 mm) long. It ends in one rectangular male connector with two blade-type female terminals.

    Can a lit ABS light mean this wheel speed sensor has failed?

    Yes, it can. A lit ABS warning light can be a sign of a failed wheel speed sensor, and a shop can test the sensor to confirm.

    Does Standard Ignition ALS1206 replace ABS1316?

    Yes. ABS1316 is one of the interchange numbers listed for Standard Ignition ALS1206.
