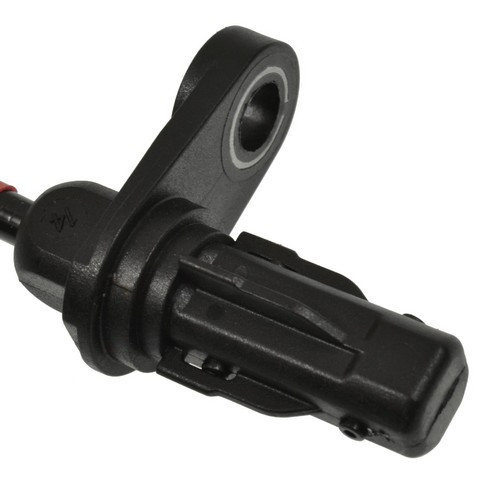

Front Right ABS Wheel Speed Sensor for 2011-2012 Hyundai Sonata - Standard Ignition ALS2288

$298.99
Standard Ignition ABS Wheel Speed Sensor ALS2288
Standard Ignition ABS Wheel Speed Sensor ALS2288 - view 2
Standard Ignition ABS Wheel Speed Sensor ALS2288 - view 3
Standard Ignition ABS Wheel Speed Sensor ALS2288
Standard Ignition ABS Wheel Speed Sensor ALS2288 - view 2
Standard Ignition ABS Wheel Speed Sensor ALS2288 - view 3

Vehicles this part fits
    Part number: ALS2288
    UPC: 727943164162
    Condition: New
    Weight: 0.47 LBS
    Item Package Quantity: 1
    $298.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS2288
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS2288
    $298.99
    $298.99

    Standard Ignition ALS2288 front right ABS wheel speed sensor for the 2011-2012 Hyundai Sonata reads wheel rotation speed and reports it to the ABS. That signal lets the system tell when one wheel is slowing faster than the others.

    • Durable synthetic material made to withstand harsh operating conditions
    • Sealed connector for protection in harsh conditions
    • Tested on vehicles for proper fit and correct integration with electronic safety systems
    • Pre-wired harness 830 mm (33.5 in) long with a rectangular female connector

    Quick facts

    • Part: Standard Ignition ALS2288 ABS wheel speed sensor
    • Fits: 2011-2012 Hyundai Sonata
    • Position: Front right

    An ABS warning light that stays on can point to a failing wheel speed sensor. A damaged tone ring, a worn wheel bearing or chafed wiring can be behind these signs too, so find the cause before buying. This listing is one sensor for the front right, and the front left takes its own.

    Fits

    This sensor is an OE replacement for the front right position on the 2011-2012 Hyundai Sonata.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per application: 1
    • Mounting location: Spindle
    • Mounting type: Flange, 3 bolt holes
    • Harness length: 830 mm (33.5 in)

    Build and materials

    • Connector: 1 rectangular, female
    • Terminals: 2, male, blade
    • Wiring harness: included
    • Country of origin: China

    In the box

    One front right ABS wheel speed sensor with its wiring harness. Mounting hardware is not included, so plan on new bolts.

    Installation notes

    • Grommets and wire clips are on the harness for mounting and routing, which saves technicians time.

    Frequently Asked Questions

    Is this the right 2011-2012 Hyundai Sonata wheel speed sensor for the front right?

    Yes. Standard Ignition ALS2288 is the front right sensor for the 2011-2012 Hyundai Sonata. The front left is a separate part.

    Does the Standard Ignition ABS wheel speed sensor come with mounting bolts?

    No. Mounting hardware is not included. The sensor comes with its wiring harness, which has grommets and wire clips on it.

    How long is the harness on the ALS2288 sensor?

    The Standard Ignition ALS2288 harness is 830 mm (33.5 in) long. It ends in a rectangular female connector with two male blade terminals.

    Can a bad wheel speed sensor turn on the ABS light?

    It can. A faulty sensor may set the ABS warning light, and a shop can read the codes to see which wheel is reporting the fault.

    Is this wheel speed sensor tested on vehicles before it is sold?

    Yes. Standard Ignition ABS wheel speed sensors are tested on vehicles for proper fit and correct integration with electronic safety systems.
