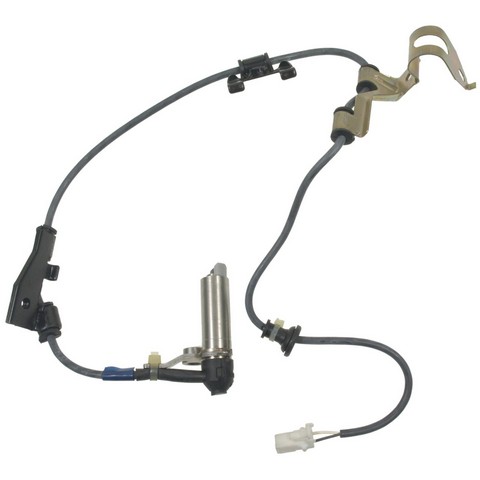

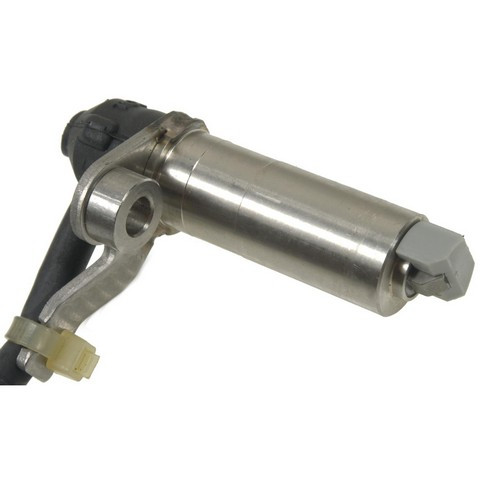

Standard Ignition ALS1238 rear left ABS wheel speed sensor for the 1993-1996 Toyota Tercel reports how fast the wheel turns to the anti-lock brake system. It is engineered specifically for Toyota vehicles.
- Constructed from durable synthetic material made to withstand harsh operating conditions
- Sealed connector protects the electrical connection in harsh conditions
- Location grommets and wire clips on the harness set the mounting and routing
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS1238 ABS wheel speed sensor
- Fits: 1993-1996 Toyota Tercel
- Position: Rear left
- Condition: New
A lit ABS warning light or a wheel-speed signal that drops out can mean this sensor is worn, though a damaged wiring harness or tone ring can also be behind those signs, so find the cause before you replace the sensor.
Fits
The 1993-1996 Toyota Tercel takes one sensor at this position, and the sensor is tested on vehicles for proper fit. This listing is one sensor for the rear left; the rear right wheel takes its own.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1
- Mounting location: Wheel
- Bolt holes: 3
- Harness length: 36 in (914 mm)
Build and materials

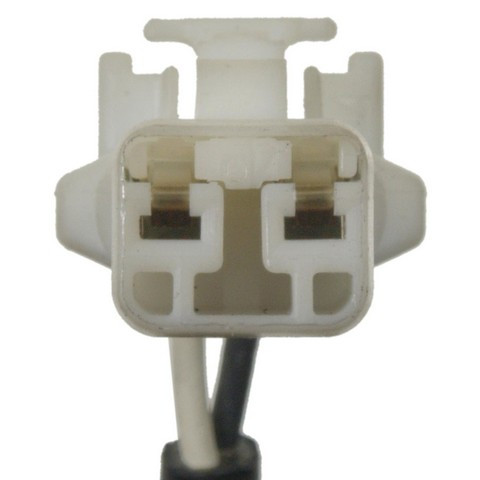

- Connector: rectangular, male, 1 connector
- Terminals: 2, female blade
- Condition: New
- Country of origin: Japan
In the box
One ABS wheel speed sensor with its harness. Mounting hardware is not included, so plan on new bolts rather than reusing the old ones.
Interchange: ABS1348 · ABSD30975 · 531750 · 8954616020
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS1348, ABSD30975, 531750, ALS1238, 8954616020
Frequently Asked Questions
Does the Standard Ignition ALS1238 sensor fit a 1993-1996 Toyota Tercel?
Yes. Standard Ignition ALS1238 is the rear left ABS wheel speed sensor for the 1993-1996 Toyota Tercel, and the car takes one at this position.
Is this Standard Ignition ABS wheel speed sensor sold with mounting hardware?
No. Hardware is not included, and the sensor has three bolt holes, so plan on new bolts rather than reusing the old ones.
How long is the harness on the ALS1238 sensor?
The harness is 36 inches (914 mm) long and ends in a rectangular connector with two blade terminals.
Can a bad rear left wheel speed sensor turn on the ABS light?
Yes, it can. A worn sensor can bring on the ABS warning light or drop the wheel-speed signal, and a shop can test the sensor with proper equipment.
Does Standard Ignition ALS1238 replace ABS1348?
Yes. Standard Ignition ALS1238 replaces ABS1348, and the Interchange line on this page gives the other numbers it replaces.
