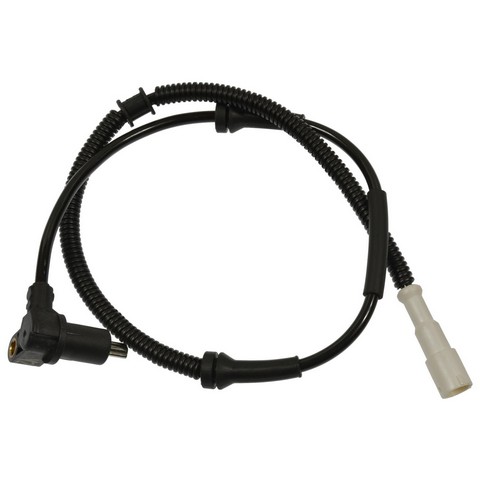

Standard Ignition ALS1389 front right ABS wheel speed sensor for the 1994-1996 Chevrolet Impala and other vehicles senses how fast the wheel turns and reports it to the ABS. The sensor is engineered specifically for GM vehicles.
- Durable synthetic material made to withstand harsh operating conditions
- Location grommets and wire clips included on the harness for proper mounting and routing
- Sealed connector for protection in harsh conditions
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS1389 ABS wheel speed sensor
- Fits: 1994-1996 Chevrolet Impala and other vehicles
- Position: Front right
- Material: Synthetic
- Condition: New
A lit ABS or traction control light can mean this sensor is worn or has failed, though a damaged tone ring or a faulty wiring connection can be behind the same light, so find the cause first. This listing is one sensor for the front right wheel; the front left takes its own sensor.
Fits
This front right sensor is a direct-fit replacement for the 1994-1996 Chevrolet Impala, the 1994-1996 Chevrolet Caprice, the 1994-1996 Buick Commercial Chassis and other vehicles. If your car isn't named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Mounting: bolt mount, 1 bolt hole
- Harness length: 35 in (889 mm)
- Terminals: 2, pin type, female
Build and materials
- Material: synthetic
- Connector: round, female, 1 connector
- Wiring harness: included
- Condition: New
- Country of origin: China
In the box
One ABS wheel speed sensor with its wiring harness, location grommets and wire clips. Mounting hardware is not included, so plan on new fasteners.
Frequently Asked Questions
Is this the right wheel speed sensor for a 1994-1996 Chevy Impala?
Yes. Standard Ignition ALS1389 is a front right sensor that fits the 1994-1996 Chevrolet Impala. The front left wheel takes a separate sensor.
Does this ABS wheel speed sensor include the wiring harness?
Yes. Standard Ignition ALS1389 comes with its 35-inch (889 mm) wiring harness, with location grommets and wire clips on the harness.

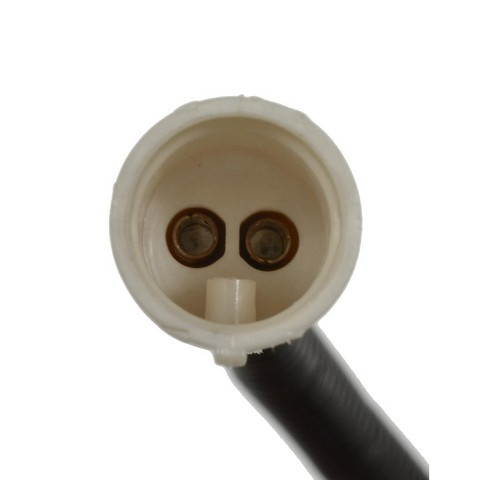

What kind of connector does the front right ALS1389 sensor have?
This sensor has one round female connector with two female pin terminals. It is an OE-style sealed connector made for harsh conditions.
How do I know a front right ABS wheel speed sensor is going bad?
The ABS warning light can come on, and the traction control light can come on with it. A shop can read the ABS codes to show which wheel's sensor is reporting a fault.

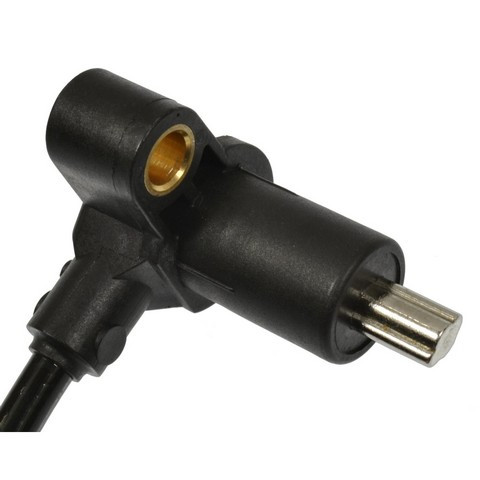

How does this ABS wheel speed sensor attach at the wheel?
It is a bolt-mount sensor with one bolt hole. Mounting hardware is not included, so plan on new fasteners.
