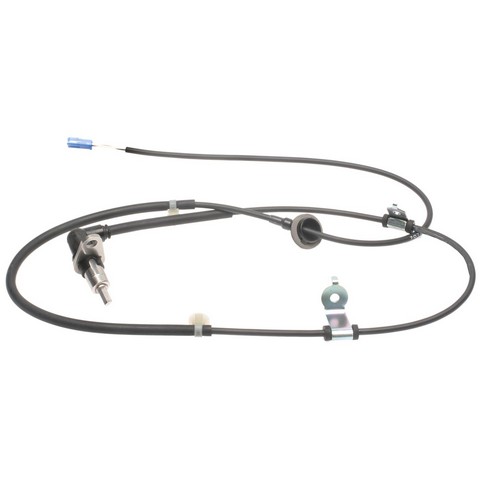

Standard Ignition ALS1434 rear left ABS wheel speed sensor for the 2002-2007 Suzuki Aerio reports wheel rotation speed to the ABS. This Standard Ignition ABS wheel speed sensor is engineered specifically for Suzuki vehicles and tested on vehicles for correct integration with electronic safety systems.
- Synthetic material made to withstand harsh operating conditions
- Location grommets and wire clips on the harness for mounting and routing
- Sealed rectangular connector for protection in harsh conditions
- Wiring harness included, 57 in (1448 mm) long
Quick facts
- Part: Standard Ignition ALS1434 ABS wheel speed sensor
- Fits: 2002-2007 Suzuki Aerio
- Position: Rear left
- Condition: New
An ABS or traction control light, or ABS that behaves oddly, can mean this sensor is worn, though a damaged wiring harness or tone ring can be behind the same signs; find the cause before replacing it.
Fits
It fits the 2002-2007 Suzuki Aerio, and the rear left position takes one sensor. This listing is one sensor; the rear right side is its own part and is ordered separately.
Specifications
Fit and size
- Position: Rear left
- Quantity per application: 1
- Mounting location: Spindle

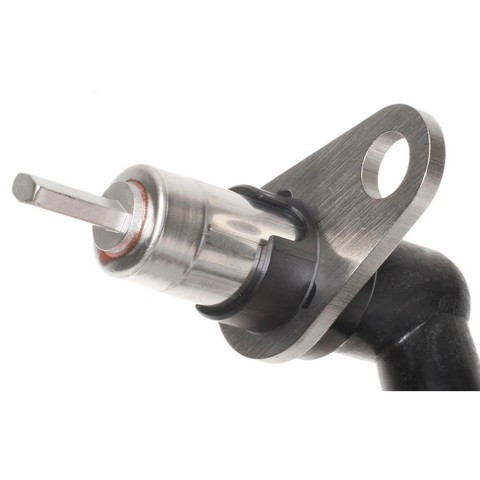

- Mounting type: Flange, 2 bolt holes
- Harness length: 57 in (1448 mm)
Build and materials

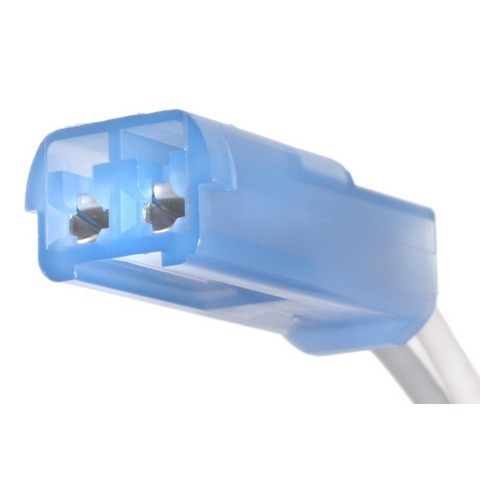

- Connector: 1 rectangular male connector
- Terminals: 2 female blade terminals
- Wiring harness: included
- Condition: New
- Country of origin: Japan
In the box
One ABS wheel speed sensor with its wiring harness, grommets and wire clips. Mounting hardware is not included, so plan on new bolts.
Installation notes
- Grommets and wire clips come on the harness for mounting and routing, which saves technicians time.
Interchange: ABS1544 · SU12790 · 531897 · 5632054G00
This part cross-references / interchanges with the following part numbers:
ABS1544, SU12790, 531897, ALS1434, 5632054G00
Frequently Asked Questions
Is the Standard Ignition ALS1434 the right ABS wheel speed sensor for the 2002-2007 Suzuki Aerio?
Yes. Standard Ignition ALS1434 is a rear left ABS wheel speed sensor for the 2002-2007 Suzuki Aerio, and the Aerio takes one on that side.
Does Standard Ignition ALS1434 come with its wiring harness and mounting bolts?
This sensor comes with its wiring harness, grommets and wire clips. Mounting hardware is not included, so plan on new bolts.
How long is the harness on this rear left ABS wheel speed sensor?
The harness is 57 inches (1448 mm) long. It ends in one male rectangular connector with two female blade terminals.
What are signs of a failing rear left ABS wheel speed sensor?
Signs can include an ABS warning light, a traction control light or ABS that behaves oddly. A shop can test the sensor with the proper tools.
Does the ALS1434 sensor interchange with 5632054G00?
Yes. Standard Ignition ALS1434 replaces 5632054G00, and also ABS1544, SU12790 and 531897.
