Front Left ABS Wheel Speed Sensor for 2004-2005 Mazda Miata - Standard Ignition ALS1646

$402.99

Vehicles this part fits

    Part number: ALS1646
    UPC: 025623269900
    Condition: New
    Weight: 0.47 LBS
    Item Package Quantity: 1
    $402.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1646
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1646
    $402.99
    $402.99

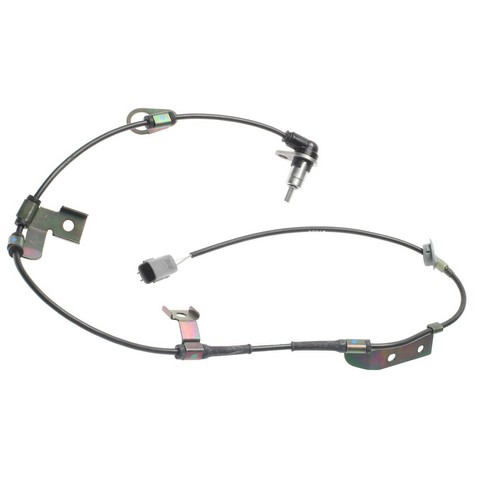

    Standard Ignition ALS1646 front left ABS wheel speed sensor for the 2004-2005 Mazda Miata senses wheel speed and sends it to the anti-lock brake system. This Standard Ignition ABS wheel speed sensor mounts at the spindle.

    • Durable synthetic material made to withstand harsh operating conditions
    • Harness fitted with location grommets and wire clips for mounting and routing
    • Sealed connector that protects against harsh conditions
    • Tested on vehicles for correct integration with electronic safety systems

    Quick facts

    • Part: Standard Ignition ALS1646 ABS wheel speed sensor
    • Fits: 2004-2005 Mazda Miata
    • Position: Front left
    • Condition: New

    An ABS warning light can mean a wheel speed sensor is failing. Before you replace this sensor, rule out damaged wiring or a loose connector on that wheel, because those can set the same light; a shop can scan the stored codes to tell them apart.

    Fits

    It fits the 2004-2005 Mazda Miata. This listing is one sensor for the front left; one sensor sits on each side of the front axle, so the right side takes its own.

    Specifications

    Fit and size

    • Position: Front left

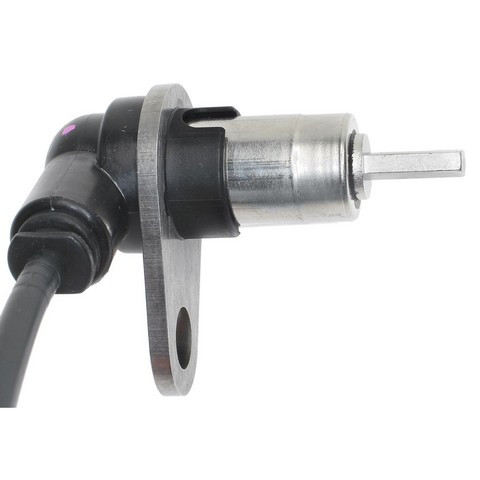

    • Mounting location: Spindle
    • Harness length: 44 in (1120 mm)

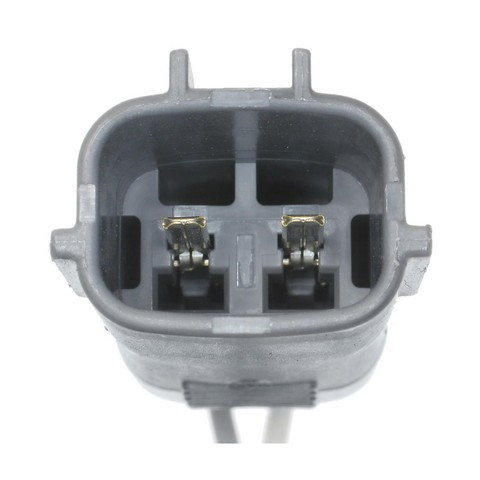

    • Connector: 1 rectangular, female
    • Terminals: 2 male blade terminals

    Build and materials

    • Material: synthetic material
    • Mounting hardware: not included
    • Condition: New
    • Country of origin: Japan

    In the box

    One ABS wheel speed sensor with its wiring harness. Mounting hardware is not included, and the old bolts may not be reusable, so plan on new ones.

    Interchange: ABS1735 · ABSD30899 · 532105 · NC144373XB

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    ABS1735, ABSD30899, 532105, NC144373XB, ALS1646

    Frequently Asked Questions

    Does the Standard Ignition ALS1646 fit the 2004-2005 Mazda Miata?

    Yes. Standard Ignition ALS1646 is the front left ABS wheel speed sensor for the 2004-2005 Mazda Miata. The front right wheel takes its own sensor.

    Does this ABS wheel speed sensor come with mounting bolts?

    No. The Standard Ignition ALS1646 comes without mounting hardware, so plan on new bolts. It does come with its wiring harness.

    How long is the harness on this ABS wheel speed sensor?

    The harness is 44 inches (1120 mm) long. It ends in one rectangular female connector with two male blade terminals.

    What can a failing front left ABS sensor look like?

    An ABS warning light on the dash can mean the sensor is failing. A shop can scan the stored codes to confirm which wheel is involved.

    Does ABS1735 interchange with this Standard Ignition ALS1646 sensor?

    Yes. ABS1735 is listed as an interchange number for Standard Ignition ALS1646, along with ABSD30899, 532105 and NC144373XB.
